Model WHFD-SS Series
BestCare® Ligature-Resistant Floor Drain - Stainless Steel Grate
Ligature-resistant floor drains are designed with an internal gusset system that helps prevent ligature points. Recommended for use in showers, bathrooms, kitchens and other areas where foot traffic is expected.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Cast Iron Floor Drains [WHFD Series; WHFD-SS Series; WHFD-SS-TP Series; WHFD-TP Series; WHFDV-6RD-2NH] | 0 | 445 KB | ||
| | BestCare® Ligature Resistant Floor Drain - 2" No Hub Duco Cast Iron Body with Strainer/Grate Stainless Steel - 5" Round [WHFD-5RD-2NH-SS], 6" Round [WHFD-6RD-2NH-SS], 5" Square [WHFD-5SQ-2NH-SS], 6" Square [WHFD-6SQ-2NH-SS] | 0 | 143 KB | ||
 | | Ligature-resistant drain strainers, Floor drains, Floor sinks, Trench drains, Channel drainage systems | 0 | 119 KB | ||
| | Ligature-resistant drain strainers, Floor drains, Floor sinks, Trench drains, Channel drainage systems | 0 | 149 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 0 | 571 KB | ||
| | BestCare® Ligature-Resistant Drains, Covers and Drain Assemblies [WHLVD Series, WHLD Series, WHFDV-6RD, WHFD Series, WHFD-TP Series, WHPD-2NH, WHDG Series, WHPG, WHDG-5RD (available for Zurn or Watts Drains)] two-page flyer (L1001725) | 0 | 1 MB |
Specifications
| Brand | BestCare® |
| Material | Stainless Steel, Nickel Bronze, Cast Iron |
| Fixture Width | 5", 6", 9" |
| Features | Round Strainer, Square Strainer |
| Appropriate for | Poured Finished Floors |
| CSI Divisions | Division 22 |
Models
Model Numbers are designated by the shape and size of the strainer head
| 5" | 6" | |
| Round | WHFD-5RD-2NH-SS | WHFD-6RD-2NH-SS |
| Square | WHFD-5SQ-2NH-SS | WHFD-6SQ-2NH-SS |
Details

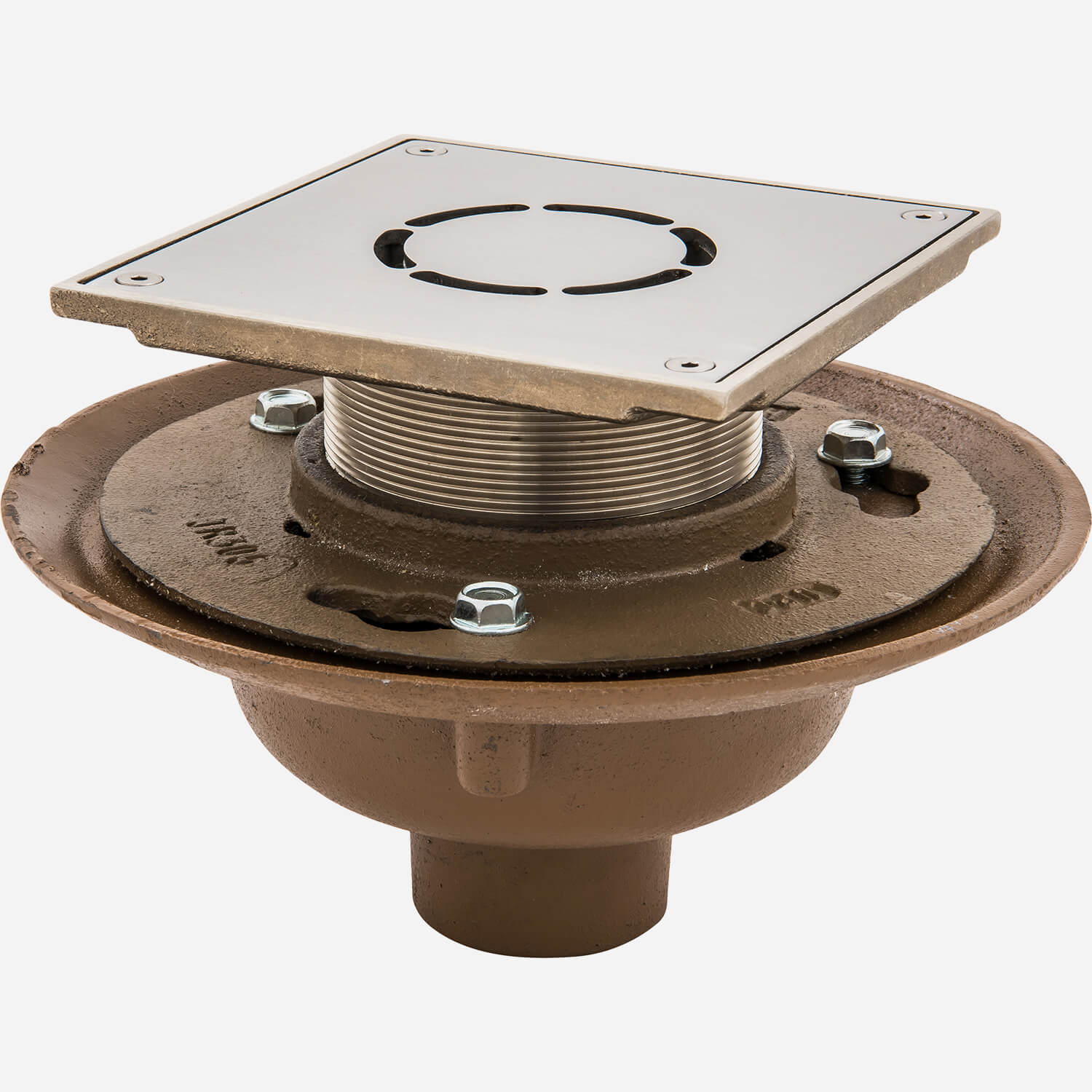

The round top strainer, fabricated of stainless steel is used for all types of poured finished floors (including concrete). The square top strainer fabricated of stainless steel, is particularly adaptable to floors that are finished in square or straight line patterns.Adjustable Height Nickel Bronze Strainer Head accommodating a round or square strainer of 5" or 6" (127 or 152 mm).Duco cast iron reversible flashing collar permits adjustment of strainer to meet finished floor level.2" No Hub Drain Body from Jay. R. Smith is fabricated of Duco cast iron- overall diameter width is 9" (229 mm).
