BestCare® Ligature-Resistant Floor Drain with Trap Primer Port - Stainless Steel Grate

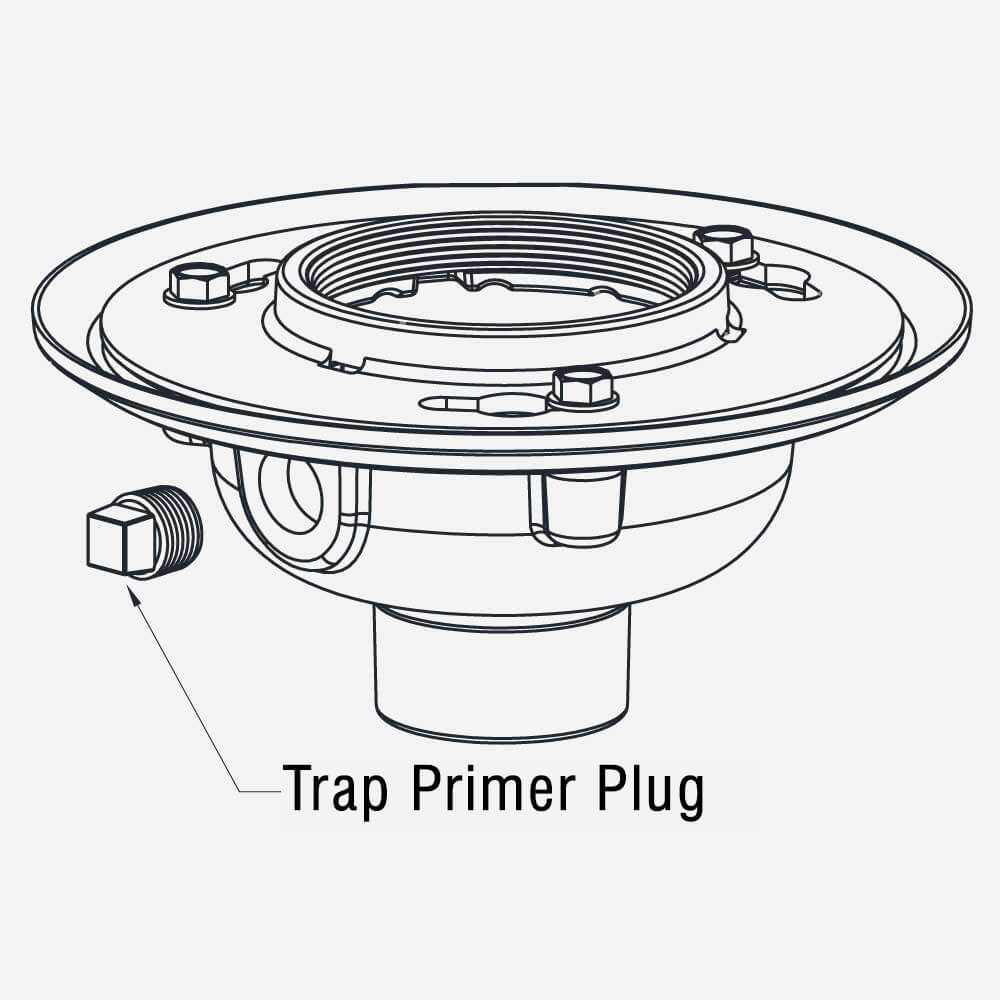

BestCare® ligature-resistant floor drains are designed with an internal gusset system that helps prevent ligature points. Recommended for use in showers, bathrooms, kitchens, and other areas where foot traffic is expected. The drain body includes a 1/2” NPT Plug for Trap Primer Connection. The round top Strainer Head is used for all types of poured finished floors. The square top is particularly adaptable to floors that are finished in square or straight-line patterns. The grate is Type 304 stainless steel. Reversible Flashing Collar permits adjustment of Strainer to meet finished floor level.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Cast Iron Floor Drains [WHFD Series; WHFD-SS Series; WHFD-SS-TP Series; WHFD-TP Series; WHFDV-6RD-2NH] | 0 | 445 KB | ||
| | BestCare® Ligature-Resistant Floor Drain with Trap Primer Port - Stainless Steel Grate | 0 | 166 KB | ||
| | BestCare® Ligature-Resistant Drains, Covers and Drain Assemblies [WHLVD Series, WHLD Series, WHFDV-6RD, WHFD Series, WHFD-TP Series, WHPD-2NH, WHDG Series, WHPG, WHDG-5RD (available for Zurn or Watts Drains)] two-page flyer (L1001725) | 0 | 1 MB |
Specifications
| Brand | BestCare® |
| Material | Stainless Steel, Nickel Bronze, Cast Iron |
| Features | Trap primer port with plug, Round Strainer, Square Strainer |
| Appropriate for | Poured Finished Floors |
| CSI Divisions | Division 22 |
Models
These drains feature a ligature-resistant stainless steel strainer with 6 slots patterned circularly providing 1.81 square inches (11.7 square centimeters) of free area, adjustable height nickel bronze strainer head, Duco cast iron flashing collar, Duco cast iron 2" No-Hub Drain Body featuring a trap primer port.

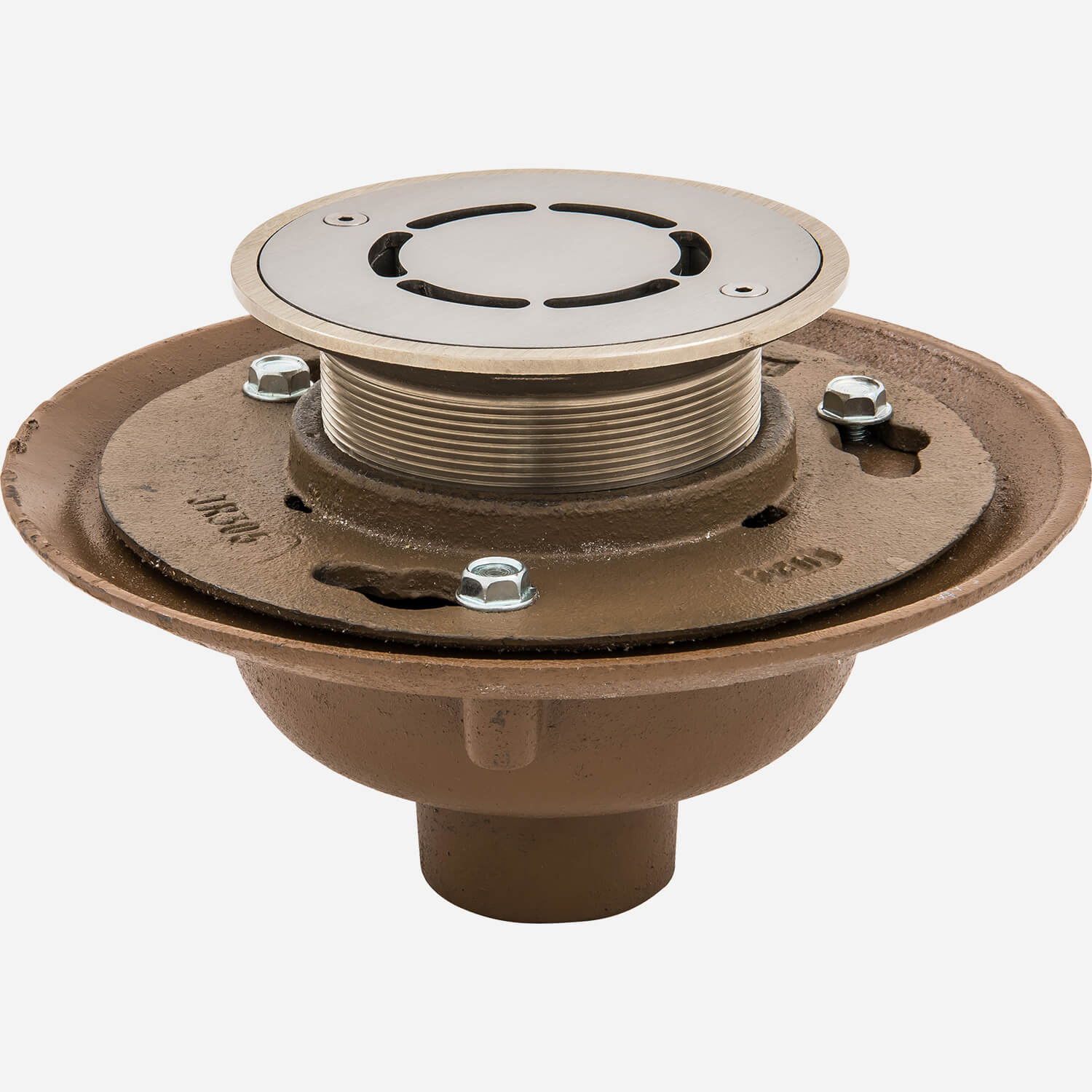

WHFD-5RD-2NH-SS-TP 5" (125 mm) Round Grate WHFD-6RD-2NH-SS-TP 6" (150 mm) Round Grate

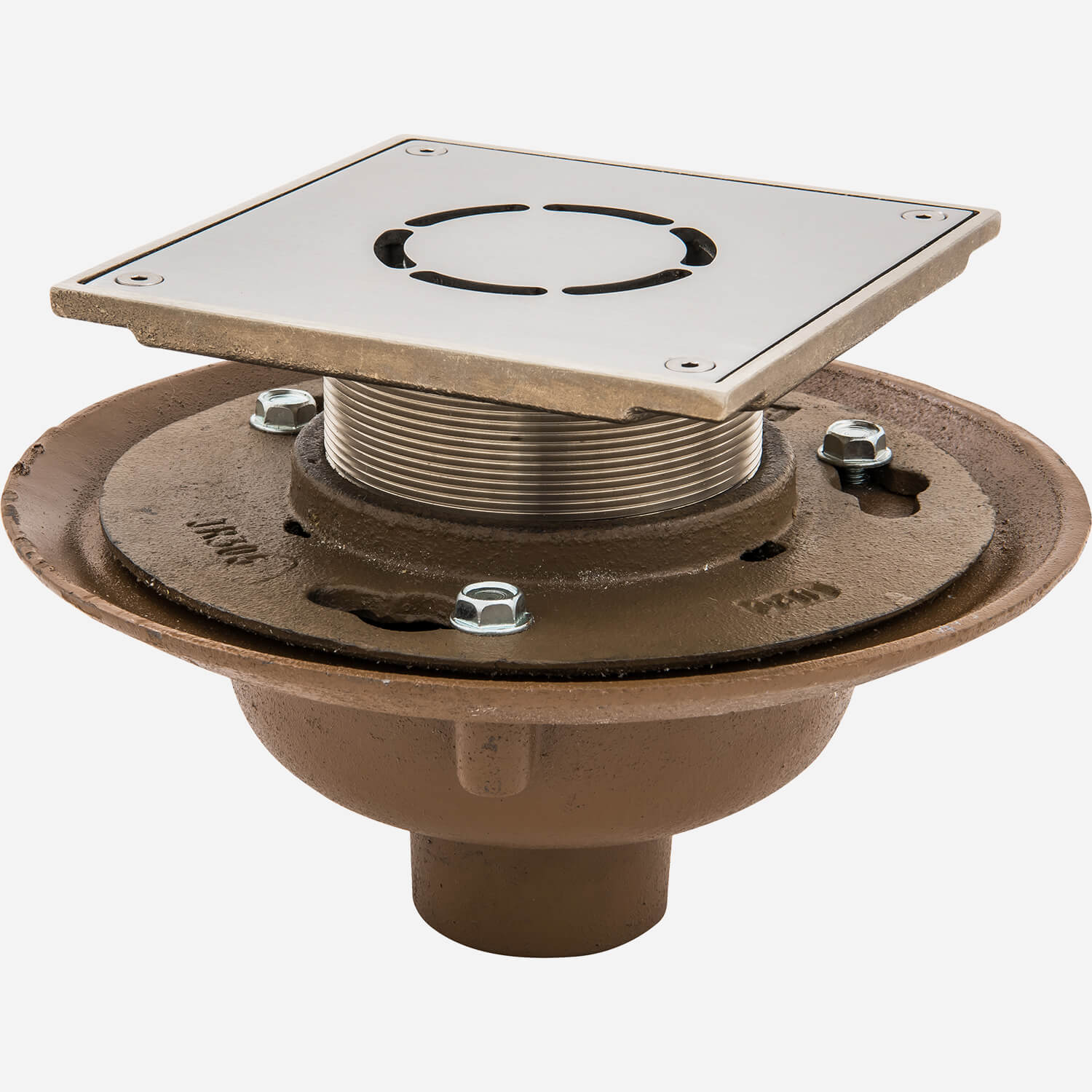

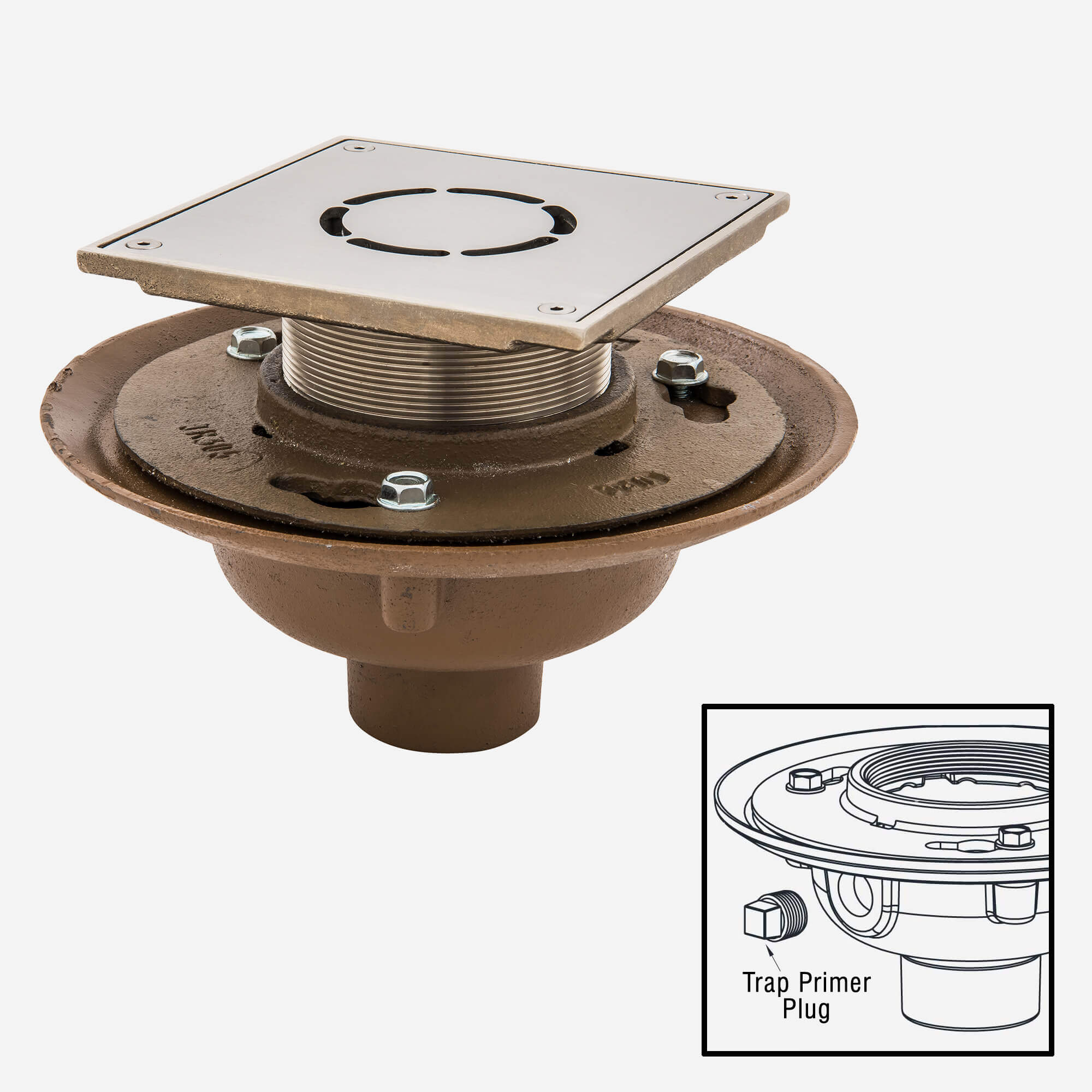

WHFD-5SQ-2NH-SS-TP 5" (125 mm) Square Grate WHFD-6SQ-2NH-SS-TP 6" (150 mm) Square Grate
