BestCare® Ligature-Resistant Floor Drain with Trap Primer Port - Nickel Bronze Grate

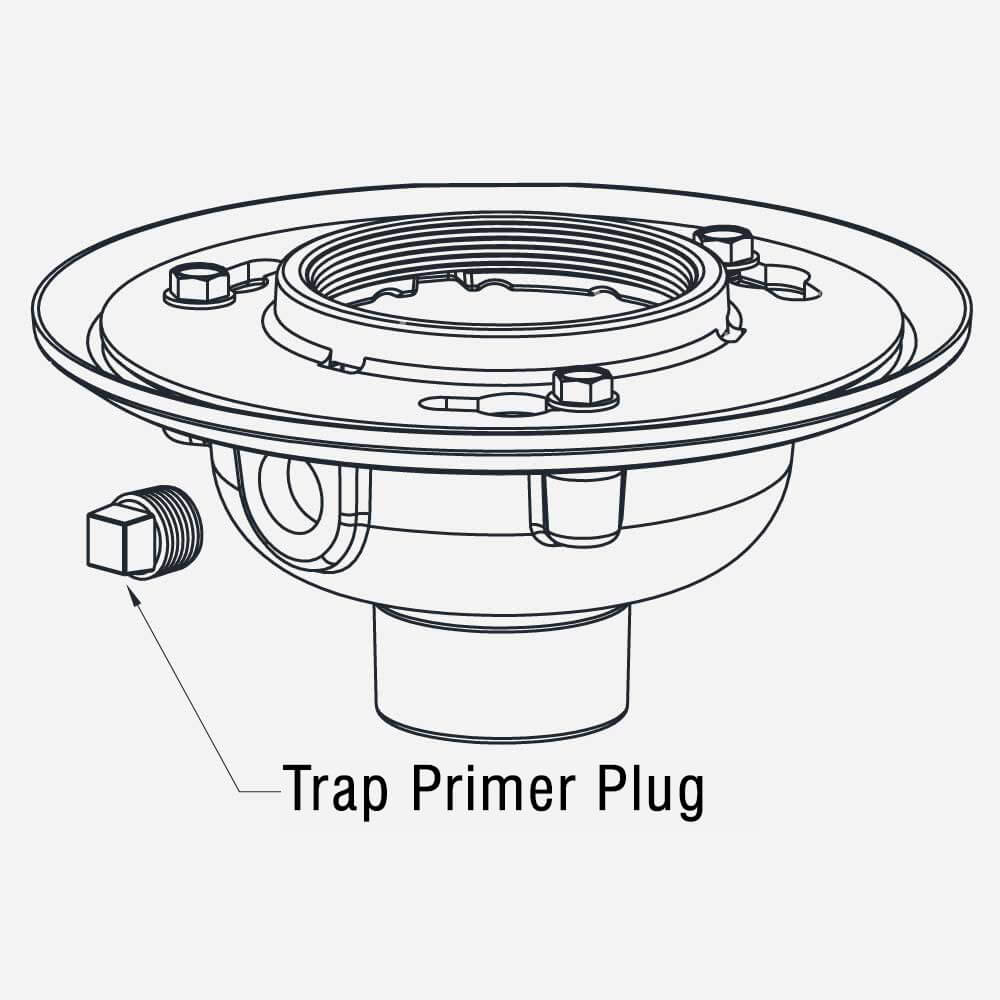

BestCare® Ligature-resistant floor drains are designed with an internal gusset system that helps prevent ligature points. Recommended for use in showers, bathrooms, kitchens, and other areas where foot traffic is expected. Drain Body includes a 1/2” NPT Plug for Trap Primer Connection. The round top Strainer Head is used for all types of poured finished floors. The square top is particularly adaptable to floors that are finished in square or straight-line patterns. Reversible Flashing Collar permits adjustment of Strainer to meet finished floor level. Grates are available in 5" (125 mm) or 6" (150 mm) sizes.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Cast Iron Floor Drains [WHFD Series; WHFD-SS Series; WHFD-SS-TP Series; WHFD-TP Series; WHFDV-6RD-2NH] | 0 | 445 KB | ||
| | BestCare® Ligature-Resistant Floor Drain with Trap Primer Port - Nickel Bronze Grate | 0 | 203 KB | ||
| | BestCare® Ligature-Resistant Drains, Covers and Drain Assemblies [WHLVD Series, WHLD Series, WHFDV-6RD, WHFD Series, WHFD-TP Series, WHPD-2NH, WHDG Series, WHPG, WHDG-5RD (available for Zurn or Watts Drains)] two-page flyer (L1001725) | 0 | 1 MB |
Specifications
| Material | Cast Iron, Nickel Bronze |
| Features | Trap primer port with plug, Square Strainer, Round Strainer |
| Fixture Width | 5", 6" |
| Appropriate for | Poured Finished Floors |
| CSI Divisions | Division 22 |
| Patent | 11,359,362 |
Models
These drains feature a ligature-resistant nickel bronze strainer with 10 slots patterned circularly in two rows providing 2.92 square inches (18.8 square centimeters) of free area, adjustable height nickel bronze strainer head, Duco cast iron flashing collar, Duco cast iron 2" No-Hub Drain Body featuring a trap primer port.

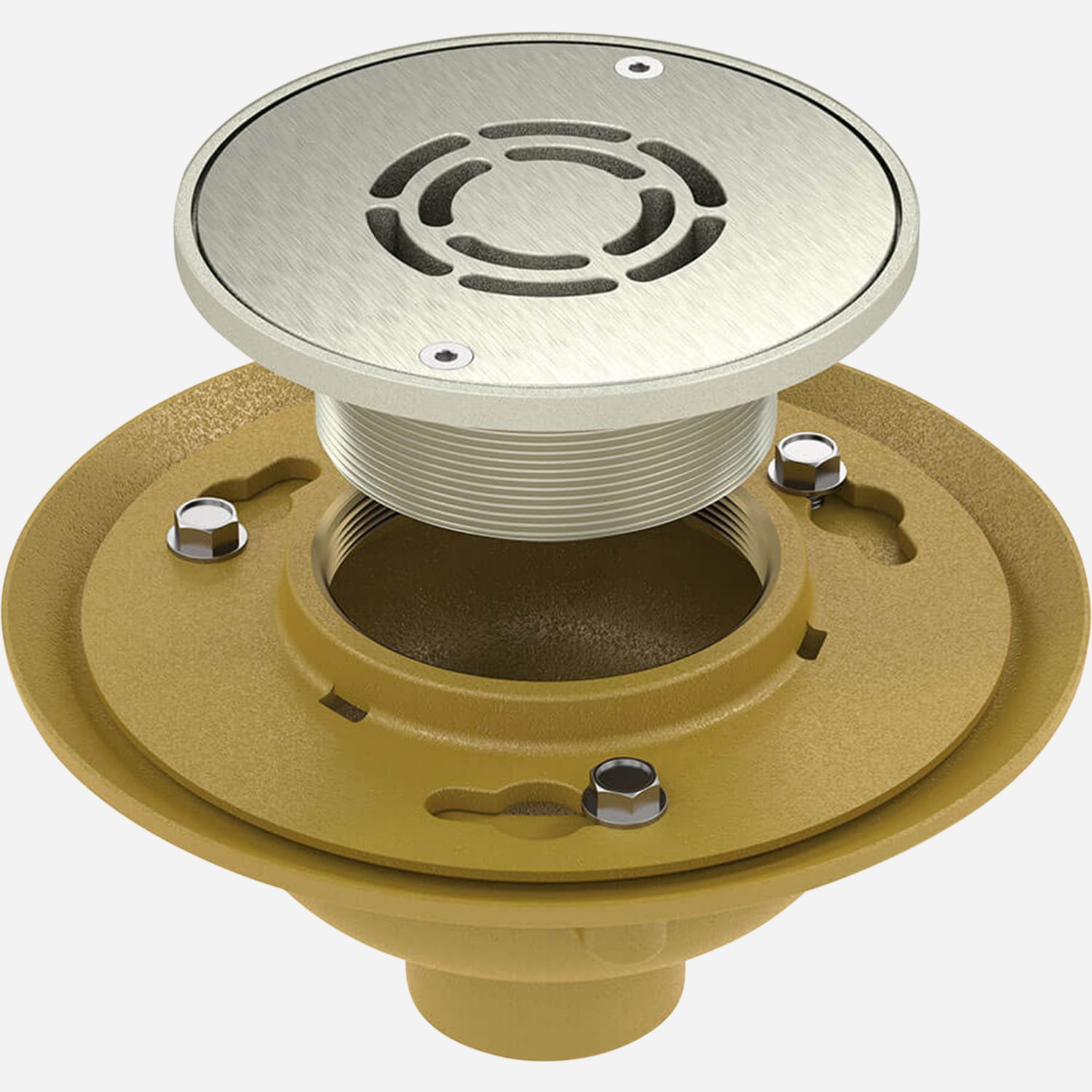

WHFD-5RD-2NH-TP 5" (125 mm) Round Grate WHFD-6RD-2NH-TP 6" (150 mm) Round Grate

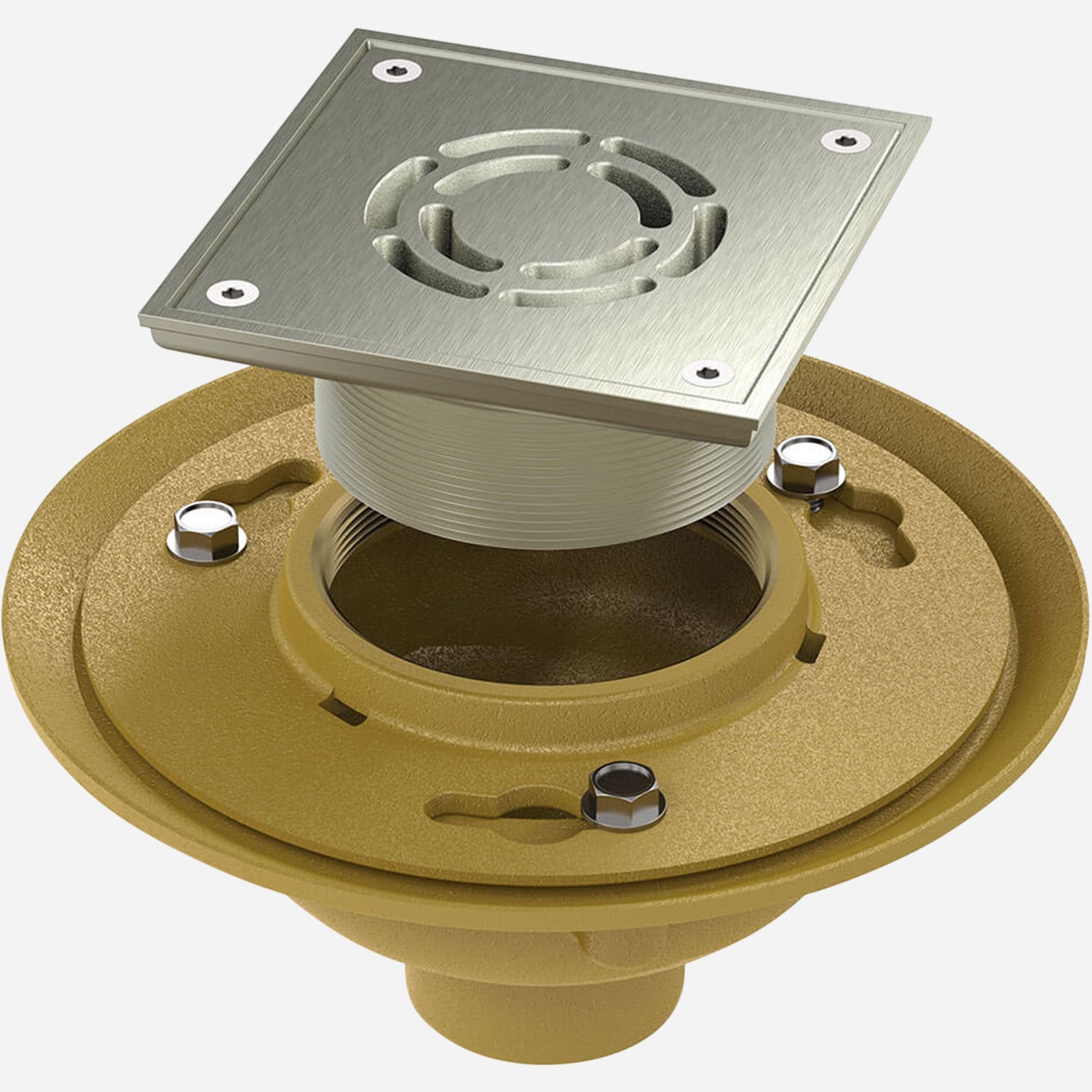

WHFD-5SQ-2NH-TP 5" (125 mm) Square Grate WHFD-6SQ-2NH-TP 6" (150 mm) Square Grate
