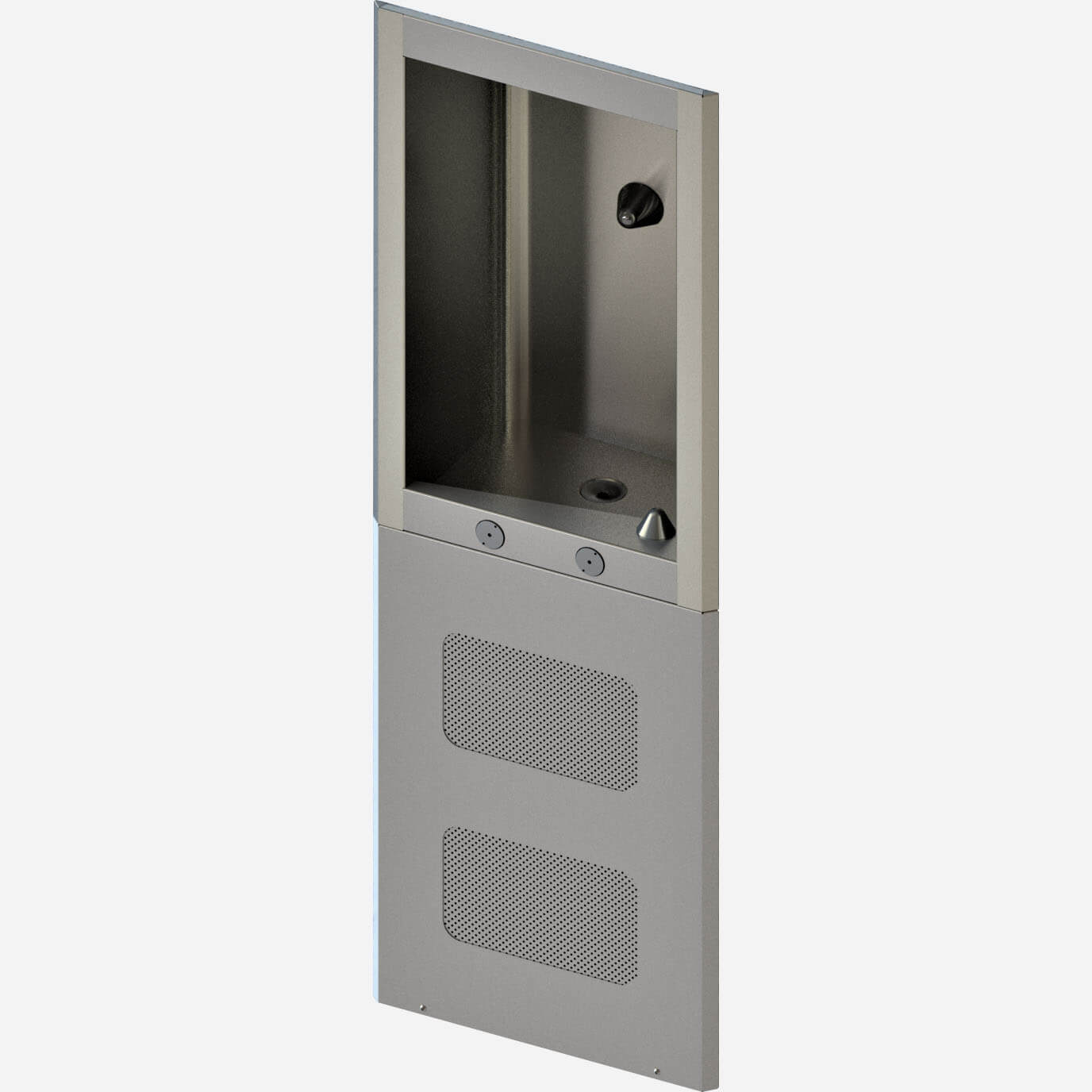

BestCare® Ligature-Resistant Recessed Electric Drinking Fountain and Bottle Filling Station

Ligature Resistant Stainless Steel Drinking Fountain is intended to be fully recessed into a finished wall and accessed from the front. Unit is a self-contained, Ligature Resistant, fully recessed pressure electric Drinking Fountain that shall deliver a minimum of 8.0 GPH (30.3 LPH) of water at 50°F (10°C) cooled from 80°F (26.7°C) inlet water and 90°F (32.2°C) ambient. Mounting Frame -MF19 is included with Drinking Fountain.

Drinking Fountain shall be activated by a brass, chrome plated front Pushbutton using less then 5 pounds of force. Bubbler shall be Stainless Steel, Ligature Resistant and operate on a water pressure range of 20-105 PSIG. Cabinet Panels shall be constructed from 304 Stainless Steel and the Bowl shall have an integral Ligature Resistant Drain. Cooling system shall use R-134a refrigerant and be capillary tube regulated. Chiller includes Factory installed Water Leak Detection Auto Shut-off Valve.

Standards: Unit is compliant to Public Law 111-380 (NO-LEAD) and NSF/ANSI/CAN 61.

Standard Features

• Ligature-Resistant
• 18 Gauge 304 Stainless Steel Cabinet
• 16 Gauge Galvanized or Galvannealed Mounting Frame (A0000000-MF19 may be pre-ordered)
• Polished Stainless Steel, Anti-Rotation, Ligature Resistant Bubbler
• Copper Tube On Stainless Steel Tank Evaporator
• 100-Mesh Inlet Strainer
• Vandal Resistant Screws

This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management and supervision of persons at risk of suicide.
