Model WH3377-8IN-PPZ

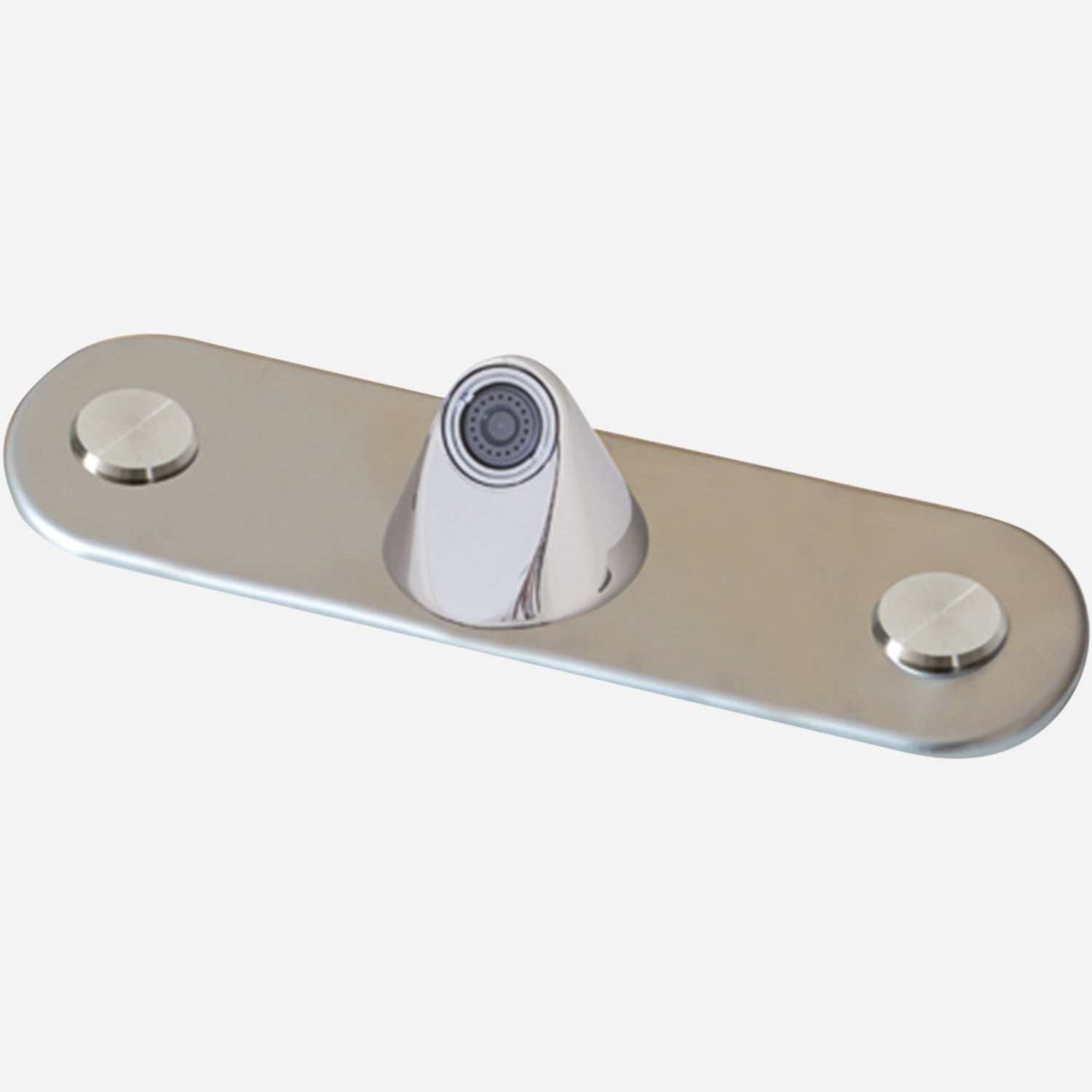

Hot & Cold Piezo Electronic Valve, Conical Faucet with Vandal Resistant Flow Nozzle, 8" Centerset, Obround Escutcheon
Product features:
- Conical chrome-plated brass faucet head
- Vandal Resistant, 0.35 Gallon (1.32 liter) per Minute Flow Nozzle (spanner key provided)
- Piezo activating pushbuttons at 8 inch (203.2 mm) centerset, requiring 1.3125 to 1.5 inch (33.3 to 38.1 mm) mounting holes
- 10.83 x 2.81 inch (275 x 71.4 mm) obround escutcheon limiting lifting corners to use as a ligature device

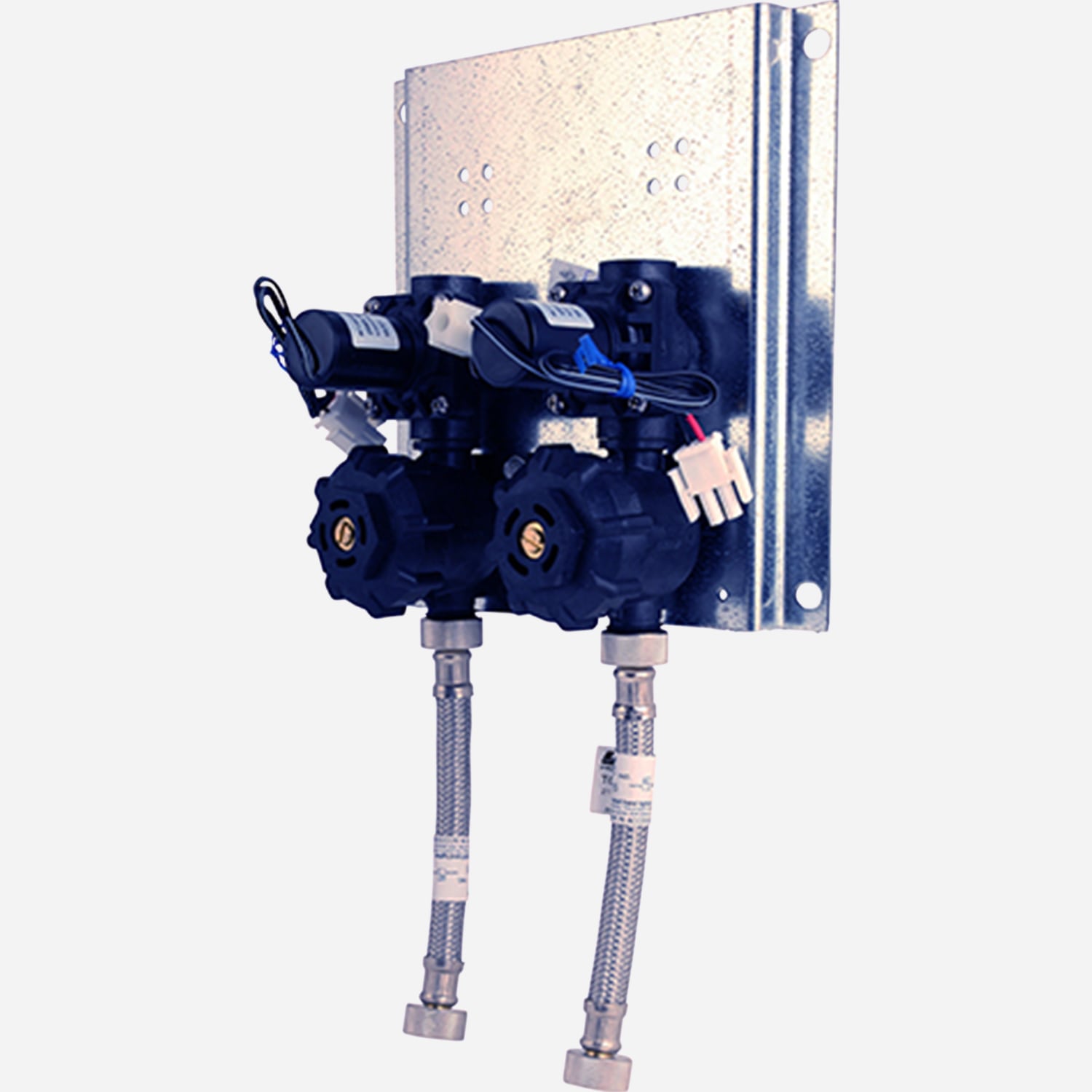

- Hot (Tempered) & Cold electronic valve assembly
- To assist in tempering the water, an optional thermostatic mixing valve is available. The valve shall be ASSE 1070 compliant.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare Faucets Manual [WH3375, WH3376, WH3377 and variations including -SO, -PPZ,-WSF, -BAT] ; includes Repair parts list | 0 | 1 MB | ||
| | Whitehall Ligature Resistant Piezo Button Electronic Valve Faucet Oval Escutcheon WH3376-PZZ (Single Temp 4" Centerset); WH3377-PZZ (Hot & Cold 4" Centerset); WH3376-8IN-PZZ (Single Temp 8" Centerset); WH3377-8IN-PZZ (Hot & Cold 8" Centerset) | 0 | 440 KB | ||
| | Programming Instructions for Piezo Pushbutton (Flow Time Adjustment) | 0 | 629 KB | ||
 | | MasterSpec: 224216.13, Commercial Lavatories (doc) | 0 | 233 KB | ||
| | MasterSpec: 224216.13, Commercial Lavatories (pdf) | 0 | 197 KB | ||
| | Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces. | 0 | 928 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB |
Specifications
| Brand | Acorn ConTrols® Inside, BestCare® |
| Material | Lead-Free Brass, Stainless Steel |
| Features | Conical faucet, Ligature-Resistant Design, Vandal Resistant Flow Nozzle |
| Faucet Centerset Spacing | 8" |
| Activation Button Type | Flat Piezo (electronic) |
| Valve Type | Hot (Tempered) & Cold, Electronic |
| Escutcheon Size | 10.83 x 2.81" (275 x 71.4 mm) obround |
| CSI Divisions | Division 22 |
Models
Typical models are shown below with their power supply
Plug-in Power Supply WH3377-8IN-PPZ
Battery Power Supply WH3377-8IN-PPZ-BAT
