Model CSG
Option: Centerset Spout - Gooseneck

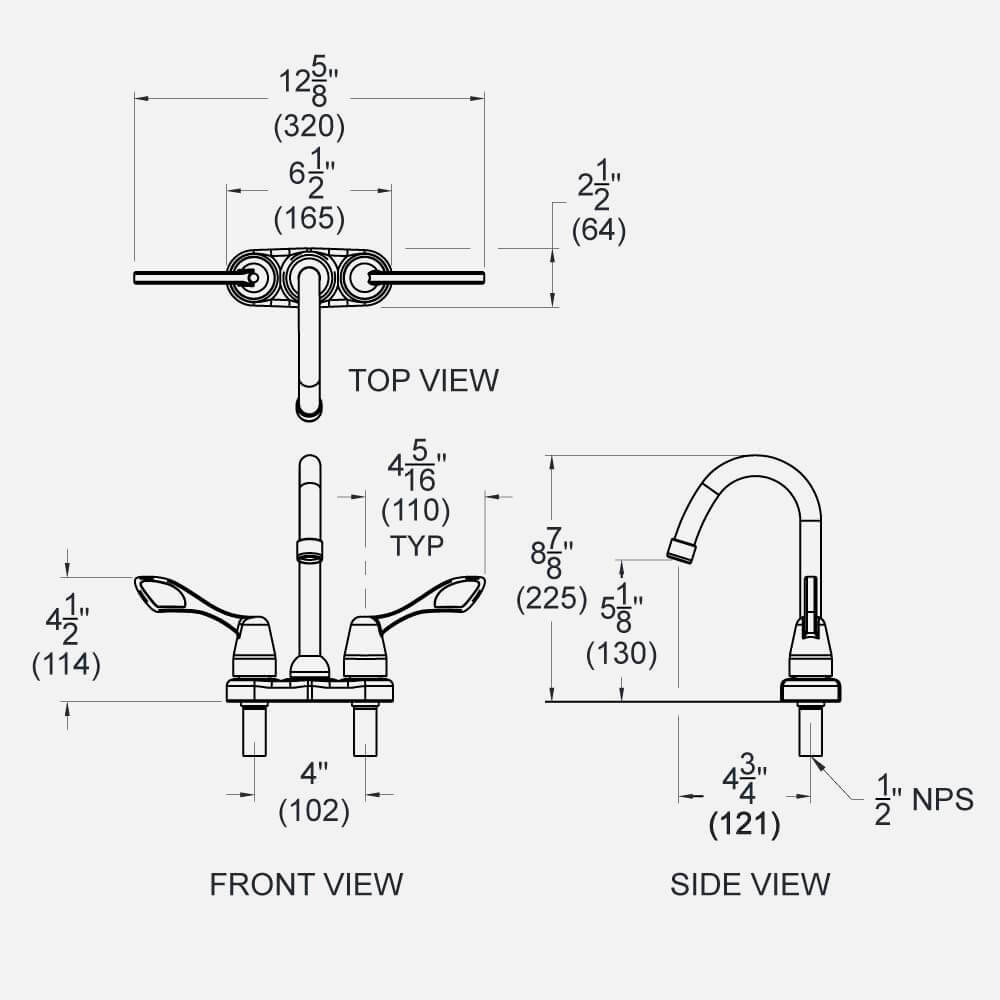

This option provides a 4" (102 mm) centerset, chrome-plated brass gooseneck spout with wrist blade handles and hot and cold indicators. Valve Body is of brass construction, with quarter turn handles and is furnished with mounting collars and nuts. 1/2" NPS supply inlets. Aerator flow to a maximum 1.2 gallon (4.5 liters) per minute.
Faucet conforms with ASME A112.18.1 / CSA B125.1, NSF 61, 9, 372.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Option: Centerset Spout - Gooseneck | 0 | 130 KB |
Specifications
| Accessibility | ADA Compliant |
| Compliances | Federal Public Law 111-380 - No Lead, ASME 112.18.1, CSA B125.1, NSF 61,9,372 |
| Material | Brass |
| Material Details | Chrome Plated |
