One-Station, ADA-Compliant Compact Scrub Sink with Eye-Face Wash

In StockThis product is available for quick shipment nationwide.
Find A Representative
Model 4121ADA
ADA (if mounted at compliant height)
IAPMO (UL1951 and CSA C22.2)
Installation Instructions
Install Guide 4121ADA Scrub Sink (pdf)
View
Submittal
Submittal 4121ADA Scrub Sink (pdf)
View
Model 4121ADA

One-Station, ADA-Compliant Compact Scrub Sink with Eye-Face Wash

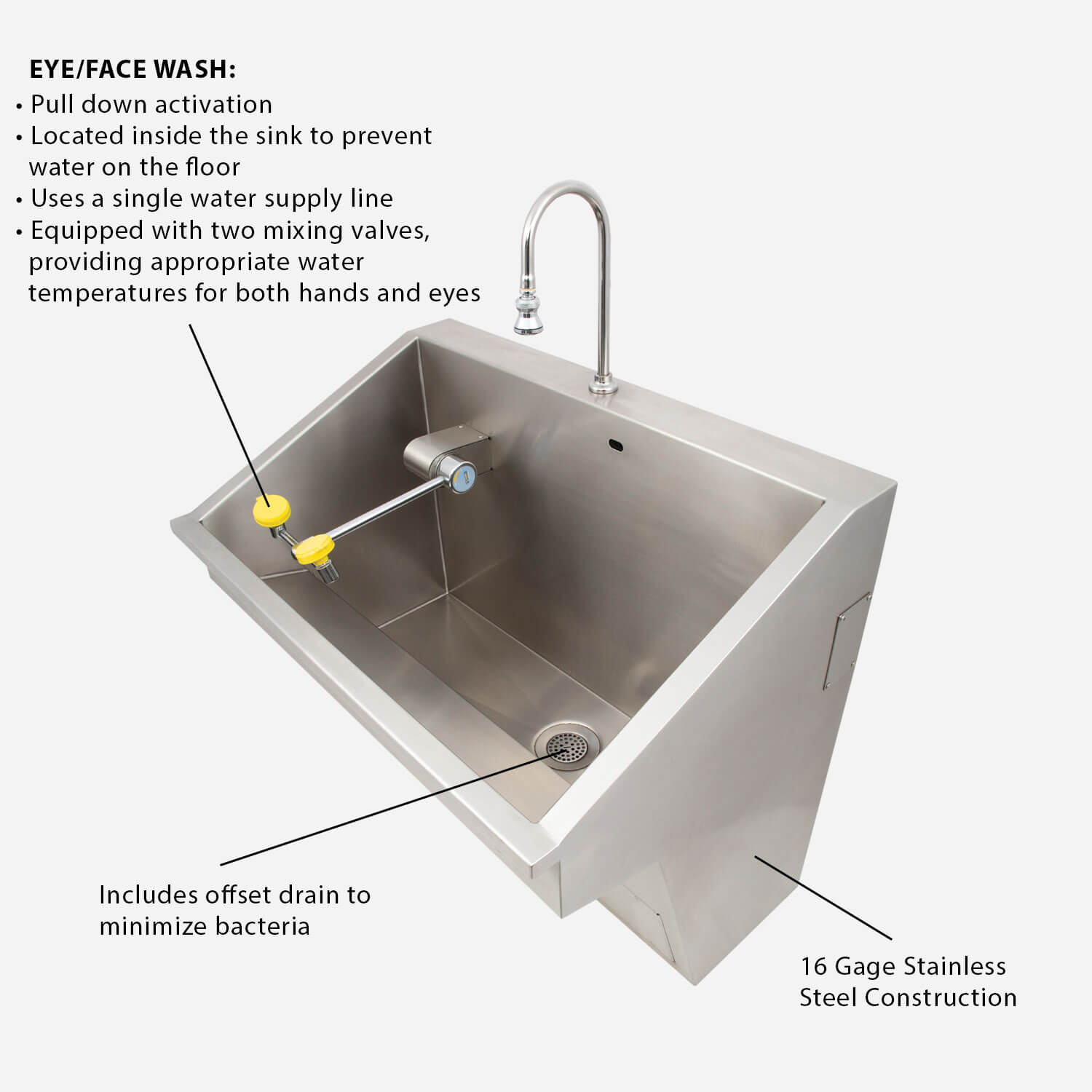

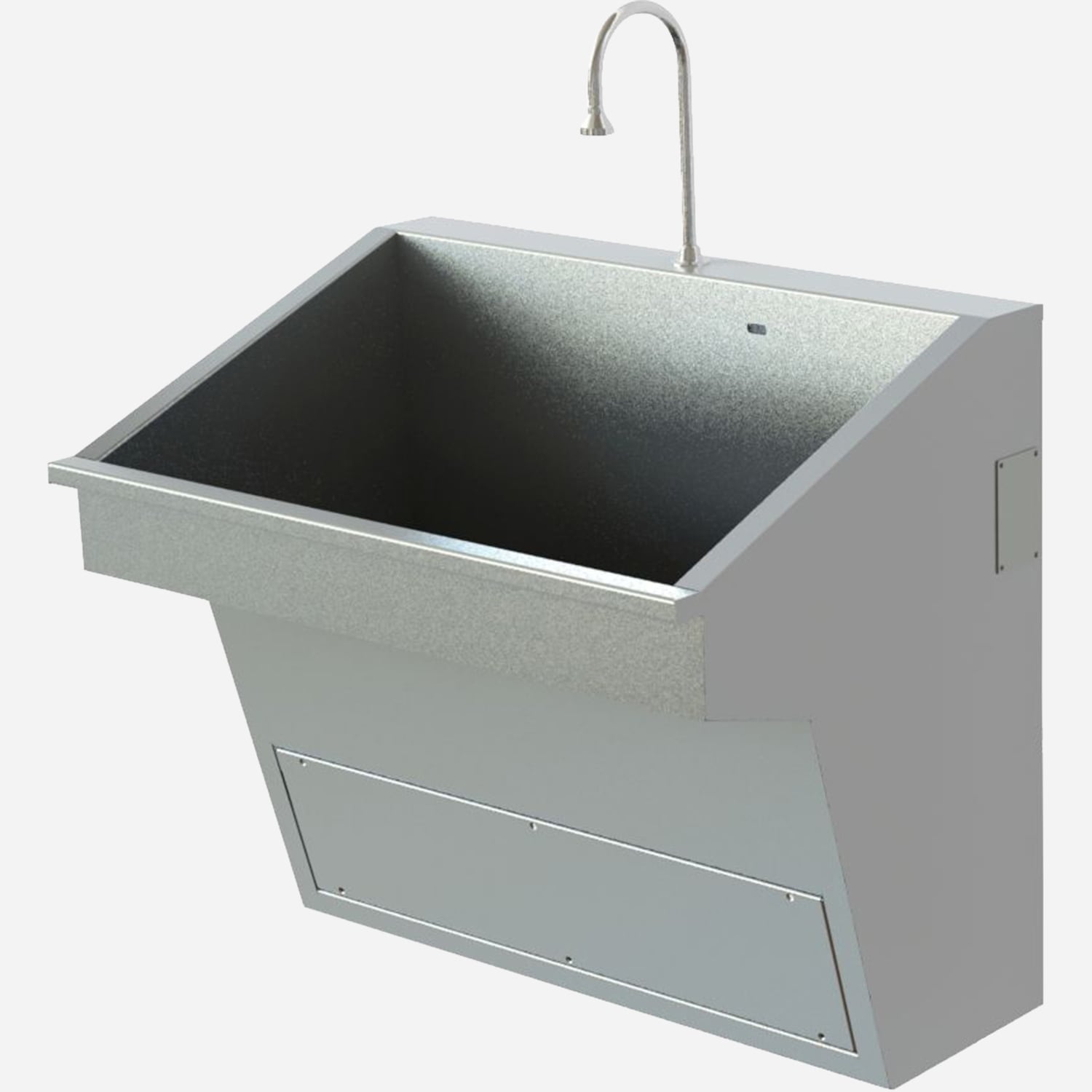

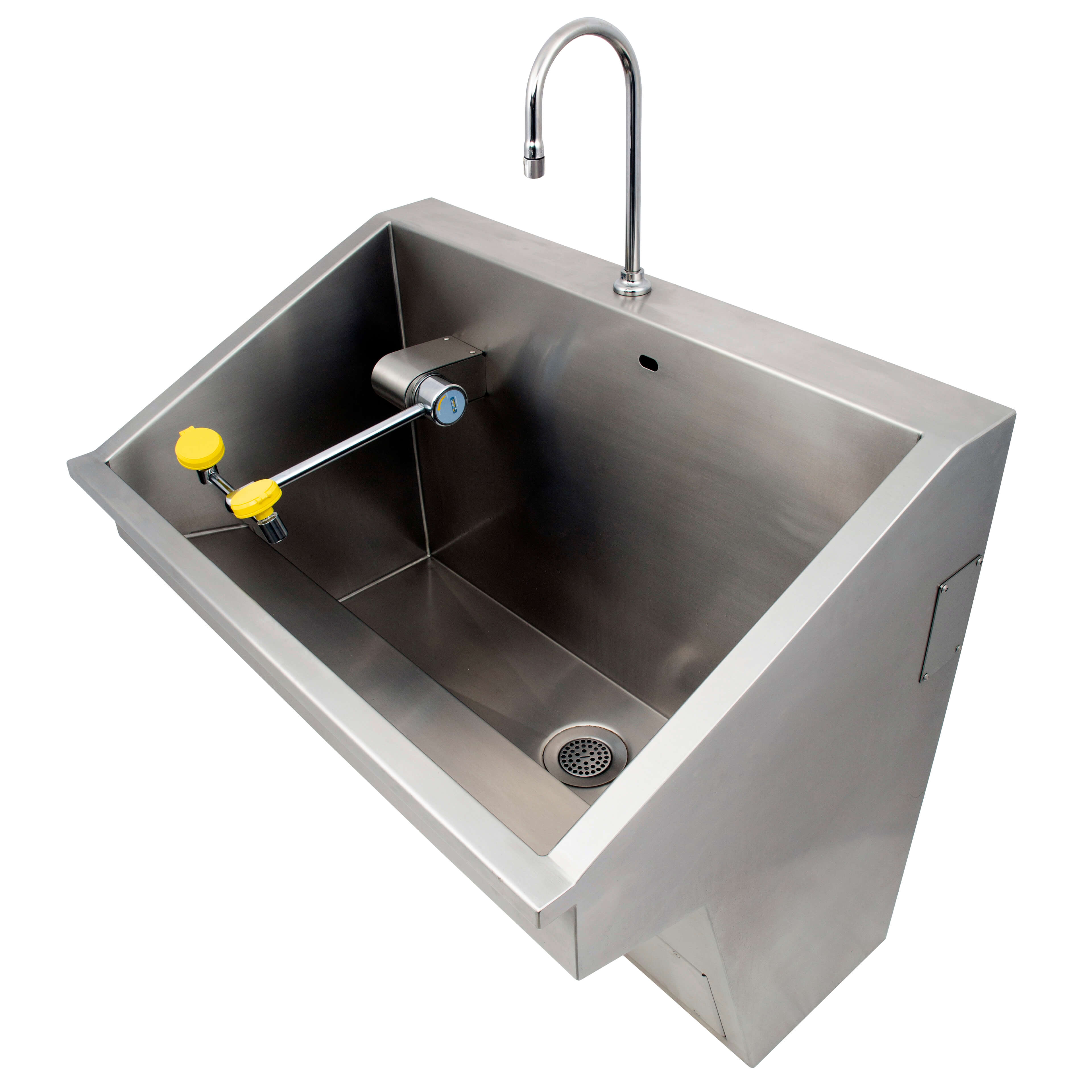

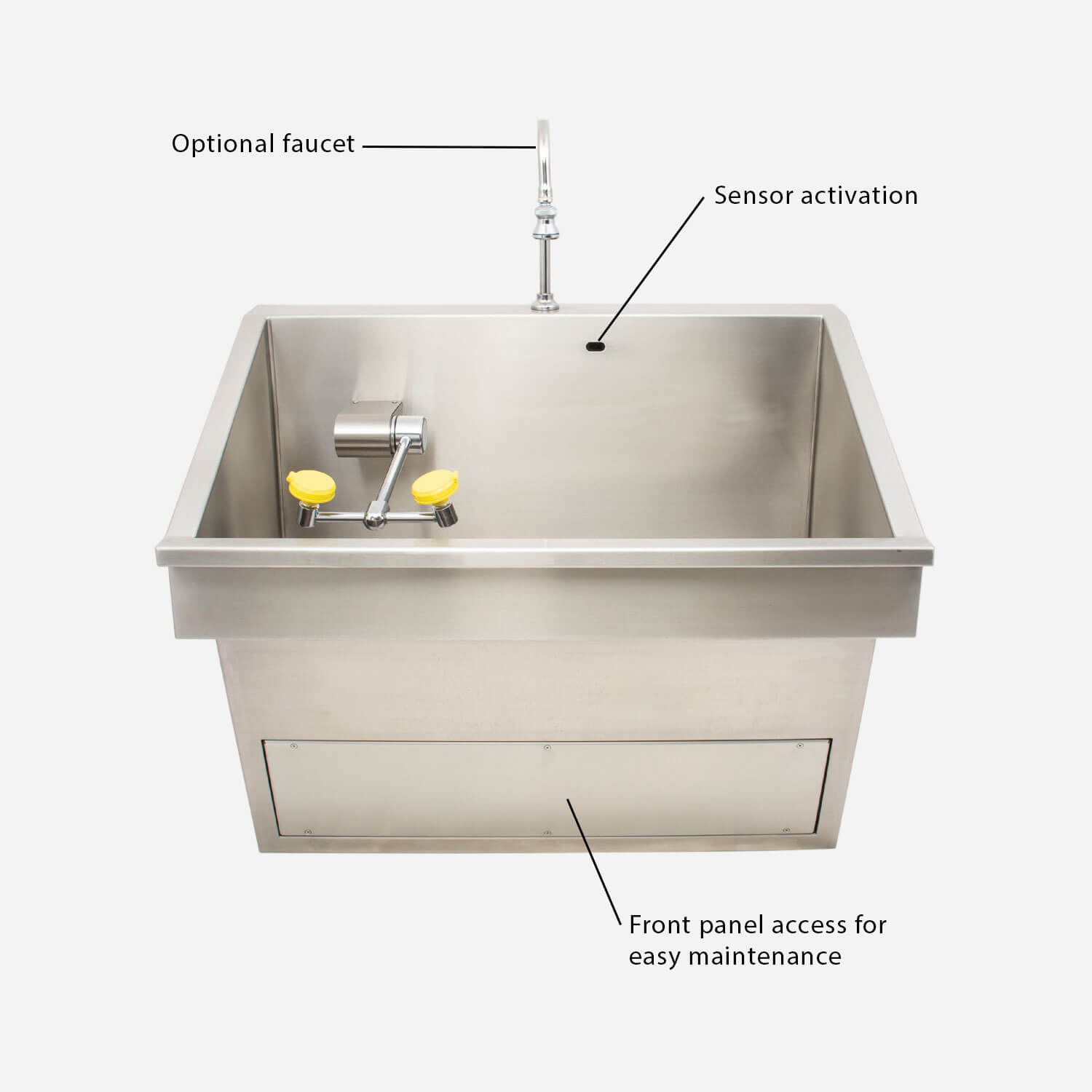

The ADA-Compliant One-Station Compact Scrub Sink features 16-gauge stainless steel construction, convenient sensor-activated faucet, front access panel designed for easy maintenance, and an offset drain to minimize the spread of bacteria. This is a one-station unit measuring 36" (914.4 mm) wide.

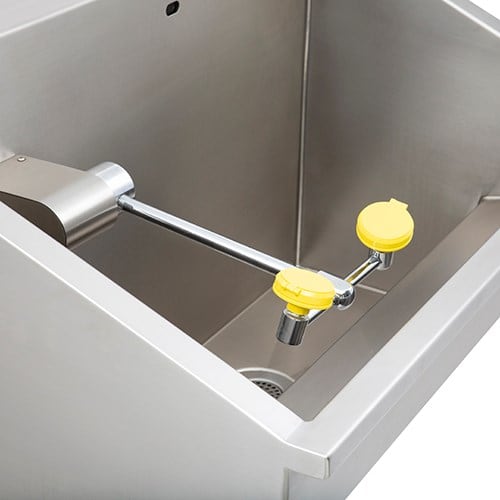

For increased safety and USP <800> compliance, we’ve added an option for a pull down-activated eye-face wash. Contaminants can be flushed away inside the sink to prevent water on the floor.A mixing valve assembly designed for safety equipment will be provided.

Sink has a 1-1/2" O.D. tail piece with a 3" (76.2 mm) flat strainer drain and gooseneck spout assembly with removable spray head.

Water for the scrub sink is tempered using a thermostatic mixing valve. The valve is ASSE 1070 compliant.

MGI Controls Inside

What is USP <800>?

USP <800> is a standard for the safe handling of hazardous drugs, in order to minimize risk to healthcare personnel, their patients, and the environment.

Who Uses USP <800>?

The USP <800> standard is relevant for healthcare personnel handling hazardous drugs, including workers in regular and compounding pharmacies, hospitals, outpatient clinics, physician facilities, and other human and animal healthcare venues.

Where does USP <800> Come From?

The U.S. Phamacopeia (USP) is an independent, nonprofit scientific organization focused on building trust in the supply of safe, quality medicines. USP Official Reference Standards, such as USP <800>, provide tools to guide patient safety and care.

Whitehall and USP <800>

The Whitehall® Scrub Sink with Eye/Face Wash (Model No. 4121ADA-008) is designed not only to meet, but to exceed USP <800> standards.

Whitehall is the only company manufacturing both the scrub sink and the eyewash.

They are IN STOCK for quick shipment and ADA-compliant. Download the flyer today!

Earn CEU Credits with Whitehall

“Wash Your Hands One More Time” covers necessary information about sanitation practices and bacteria with regards to hand washing and infection prevention. This course offers professional credit for 31 industry associations and is HSW (Health, Safety, and Welfare) eligible.

Earn Credits Now

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Install Guide 4121ADA Scrub Sink (pdf)
One Station ADA Compliant Compact Scrub Sink01 MB
PDF icon
Submittals
PDF icon
Submittal 4121ADA Scrub Sink (pdf)
ADA Compact One Station Scrub Sink0173 KB
RFA icon
Drawings
RFA icon
4121ADA Scrub Sink Revit Drawing
Single Station ADA Compliant Compact Scrub Sink0308 KB
RFA icon
Drawings
RFA icon
4121ADA Scrub Sink (dwg/zip)
Single Station ADA Compliant Compact Scrub Sink0179 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 224300, Healthcare Plumbing Fixtures (doc)
Whitehall Mfg - Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare shower valves, Healthcare bathing units, Bedpan washers0320 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 224300, Healthcare Plumbing Fixtures (pdf)
Whitehall Mfg - Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare shower valves, Healthcare bathing units, Bedpan washers0282 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today07 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
MGI Brands Flyer (pdf)0718 KB
PDF icon
Technical Data Sheets
PDF icon
Smith Fixture Selection Guide for Whitehall Fixtures (pdf)
Smith Fixture Support Selection Guide for Wall Hung Fixtures by Whitehall0188 KB
PDF icon
Brochures/Flyers
PDF icon
Mobile Tradeshow Guide (pdf)
The Whitehall & AcornVac Mobile Showroom Guide0571 KB
PDF icon
Technical Data Sheets
PDF icon
Whitehall Cleaning and Care Guide (pdf)
Whitehall Cleaning Guide for Stainless Steel, Enviro-Glaze Powder Coating, Corterra® Solid Surface, Plastic/Polyethylene, Resin & Laminate/Melamine Surfaces.0928 KB
PDF icon
Brochures/Flyers
PDF icon
Scrub Sink With Eye/Face Wash Flyer (pdf)
Scrub Sink With Eye/Face Wash Flyer (pdf)0806 KB
PDF icon
Brochures/Flyers
PDF icon
ScrubWare Brochure (pdf)
ScrubWare Brochure01 MB
PDF icon
Parts Manuals
PDF icon
Parts Assembly Drawing 9975-044-001 (pdf)
Gooseneck Faucet (back sink wall for Scrub Sinks)070 KB
JPG icon
Images
JPG icon
4121ADA-0008 Scrub Sink (hi res jpg)
Barrier-Free Single-Station Stainless Steel Scrub Sink with Swing-down Eye-Face Wash0346 KB
Video icon
Videos
Video icon
Plumbing Solutions for the Modern Healthcare Environment (video)
Plumbing Solutions for the Modern Healthcare Environment (video)0131 KB
Video icon
Videos
Video icon
Scrub Sinks and ADA Scrubsinks (video)
Scrub Sinks and ADA Scrubsinks (video)0133 KB

Specifications

Waste LocationWall
AccessibilityADA (if mounted at compliant height)
Fixture Width36"
MaterialStainless Steel, Antimicrobial Copper-Nickel (custom request)
BrandAcorn ConTrols® Inside, Scrub-Ware®
Type of MountWall Mount
CSI DivisionsDivision 22
CompliancesUSP <800>

Options

Accessories

Model
Description
Downloads
Accessory: Eye-Face Wash
EFW
Accessory: Eye-Face Wash
Accessory: Laminar Flow Nozzle
LFN
Accessory: Laminar Flow Nozzle
Accessory: Swivel Nozzle on Gooseneck
SWV
Accessory: Swivel Nozzle on Gooseneck

Miscellaneous

Model
Description
Downloads
Mounting Carrier for Sink
MC for Scrub Sinks
Mounting Carrier for Sink
