BestCare® Ligature-Resistant, ADA Compliant Toilet, On-Floor, Wall Supply
NOTE: The toilets are supported on the floor and bolted to a reinforced wall. The fixtures are not intended for use with toilet carriers. Contact factory when in-wall carrier support exists.

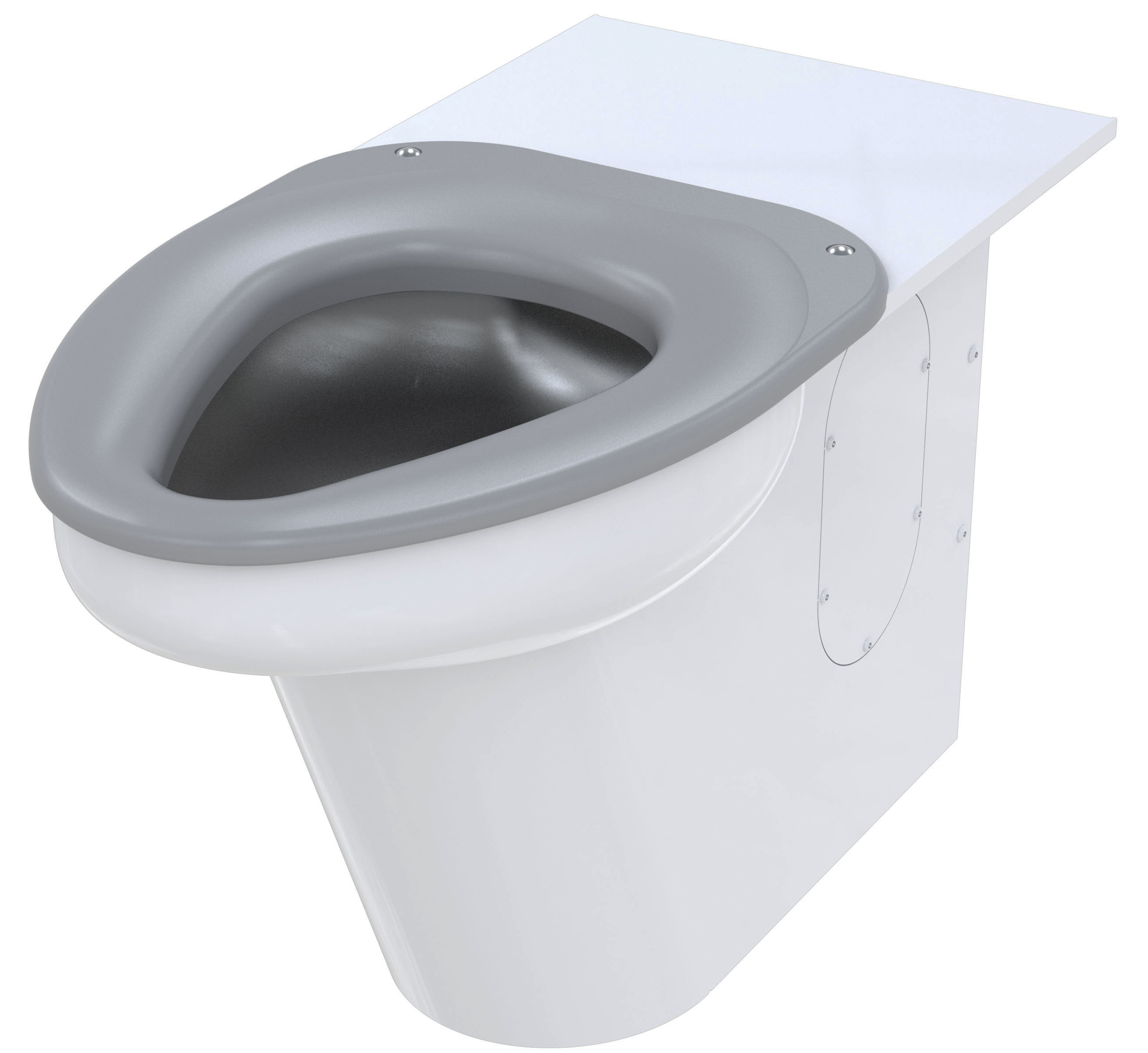

This stainless steel Siphon Jet toilet is designed with winged-sides. This deters the toilet from being utilized as a ligature device. The toilet is also designed for accessible design, compliant to ADA 2010, ASME A112.19.3 and CSA B45.4. The toilet is mounted, from the front, against the wall on the floor.
The waste is evacuated behind the toilet into waste plumbing behind the wall.

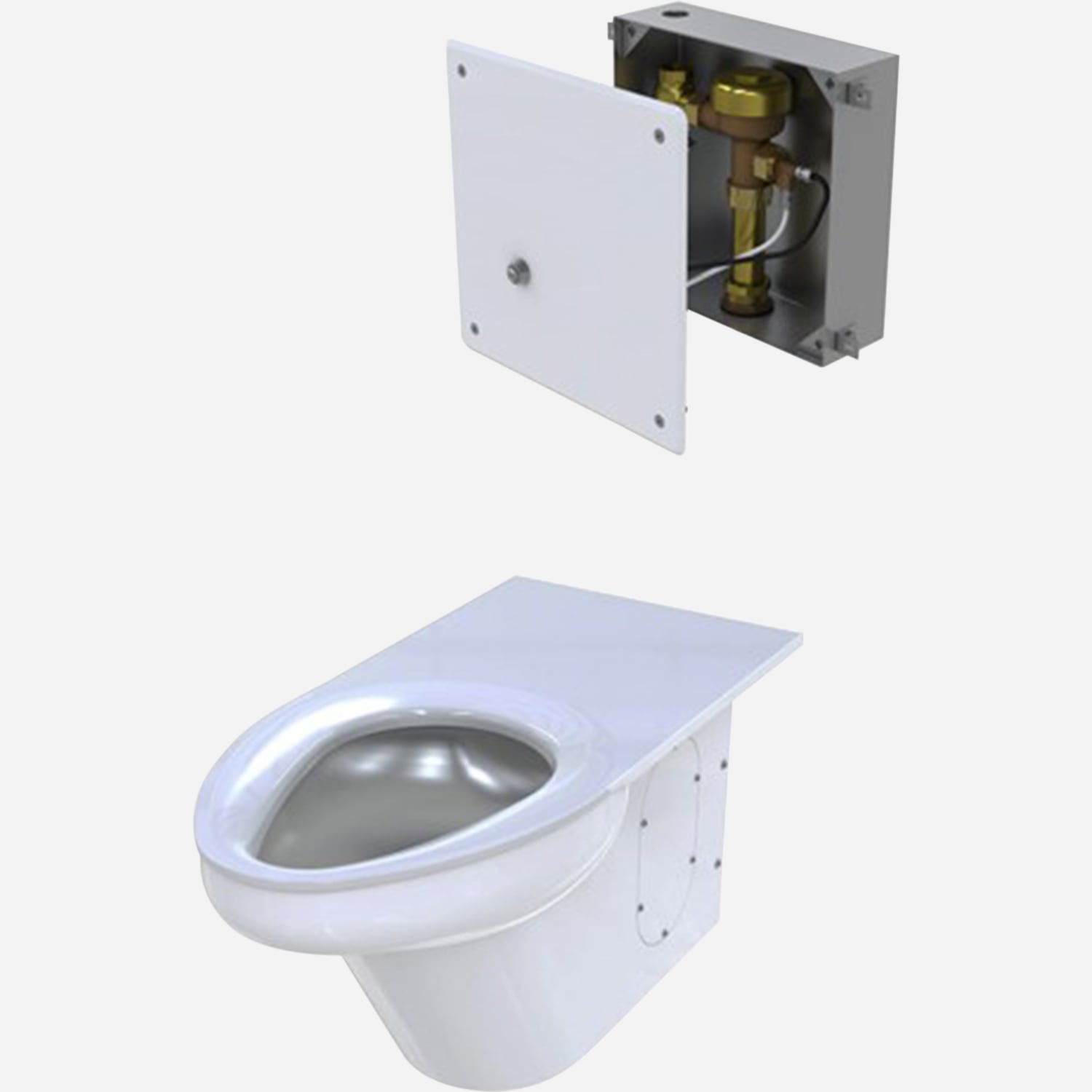

The water supply to the toilet is via the rear where a wall supply flush valve must be installed. An ADA compliant hydraulic Wall Supply Flush Valve in a Ligature Resistant cover is available separately.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Toilet, Wall Waste [WH2142-T-2 | Top Supply; WH2142ADA-T-2 | ADA Toilet Height, Top Supply; WH2142-W-2 | Wall Supply; WH2142ADA-W-2 | ADA Toilet Height, Wall Supply] | 0 | 569 KB | ||
| | Wall Supply ADA Compliant Ligature Resistant Siphon Jet Toilet | 0 | 196 KB | ||
 | | BestCare® Ligature-Resistant, ADA Compliant Toilet, On-Floor, Wall Supply, Floor Waste [WH2142-ADA-W-3-EGE10_10 - 10" Rough-in, WH2142-ADA-W-3-EGE10_12 - 12" Rough-in] | 0 | 496 KB | ||
| | BestCare® Ligature-Resistant, ADA Compliant Toilet, On-Floor, Wall Supply, Floor Waste [WH2142-ADA-W-3-EGE10_10 - 10" Rough-in, WH2142-ADA-W-3-EGE10_12 - 12" Rough-in] | 0 | 455 KB | ||
| | BestCare® Ligature-Resistant Toilet, Floor Waste [WH2142-T-3 | Top Supply; WH2142ADA-T-3 | ADA Toilet Height, Top Supply; WH2142-W-3 | Wall Supply; WH2142ADA-W-3 | ADA Toilet Height, Wall Supply] includes 10 or 12" Rough-ins | 0 | 517 KB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | MGI Brands Flyer (pdf) | 0 | 718 KB | ||
| | The Whitehall & AcornVac Mobile Showroom Guide | 0 | 571 KB | ||
 | | Wall Supply, ADA Compliant WH2142 Ligature Resistant Toilet with included Ligature Resistant Toilet Seat | 0 | 296 KB | ||
 | | How to install a BestCare® toilet seat (video) | 0 | 132 KB |
Specifications
| Brand | BestCare® |
| Material | Stainless Steel |
| Material Details | White powder coating |
| Type of Mount | Wall Mount |
| Features | Requires 25 psi commercial water supply, Ligature-Resistant Design |
| Toilet Seat | Non-Lifting Ligature Resistant Grey ABS Plastic Toilet Seat Cover (included with toilet) |
| Fixture Width | 14.75" |
| Valve Type | Wall Supply - typically concealed in wall |
| Compliances | NY State Office of Mental Health, WaterSense Certified by IAPMO R&T, UPC® |
| Waste Location | Floor 10" Rough-in, Floor 12" Rough-in, Wall |
| Accessibility | ADA Compliant |
| Patent | 10,052,000 B2 |
| CSI Divisions | Division 22 |
Models
All standard toilets in this series are Ligature-Resistant, Stainless Steel, ADA Seat Height, Siphon Jet Type, Wall Supply (Rear Inlet Spud), the exterior of the toilet is powder coated Enviro-Glaze® Snow White (toilet bowl is left satin finish stainless steel)

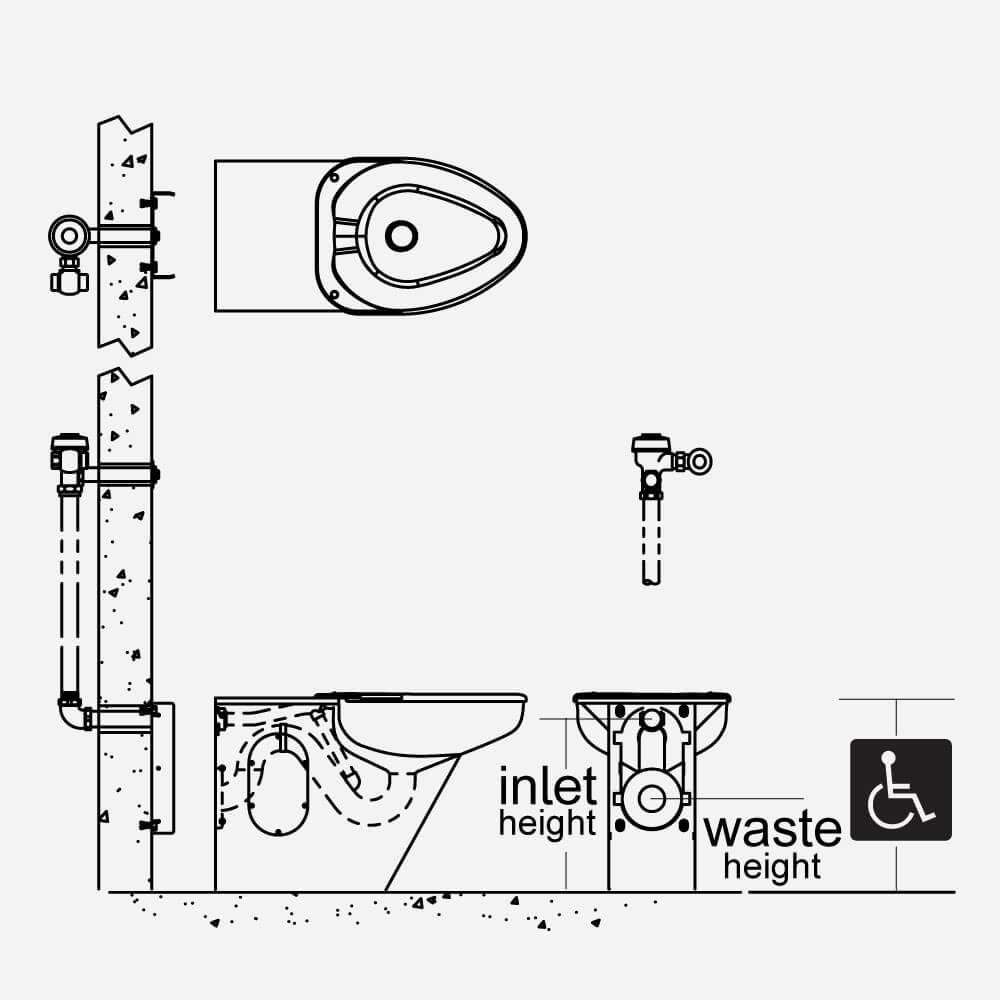

WH2142-ADA-W-2-EGE10[IN STOCK] SKU WH2142-ADA-W-0021 Wall Waste Outlet [ install guide]

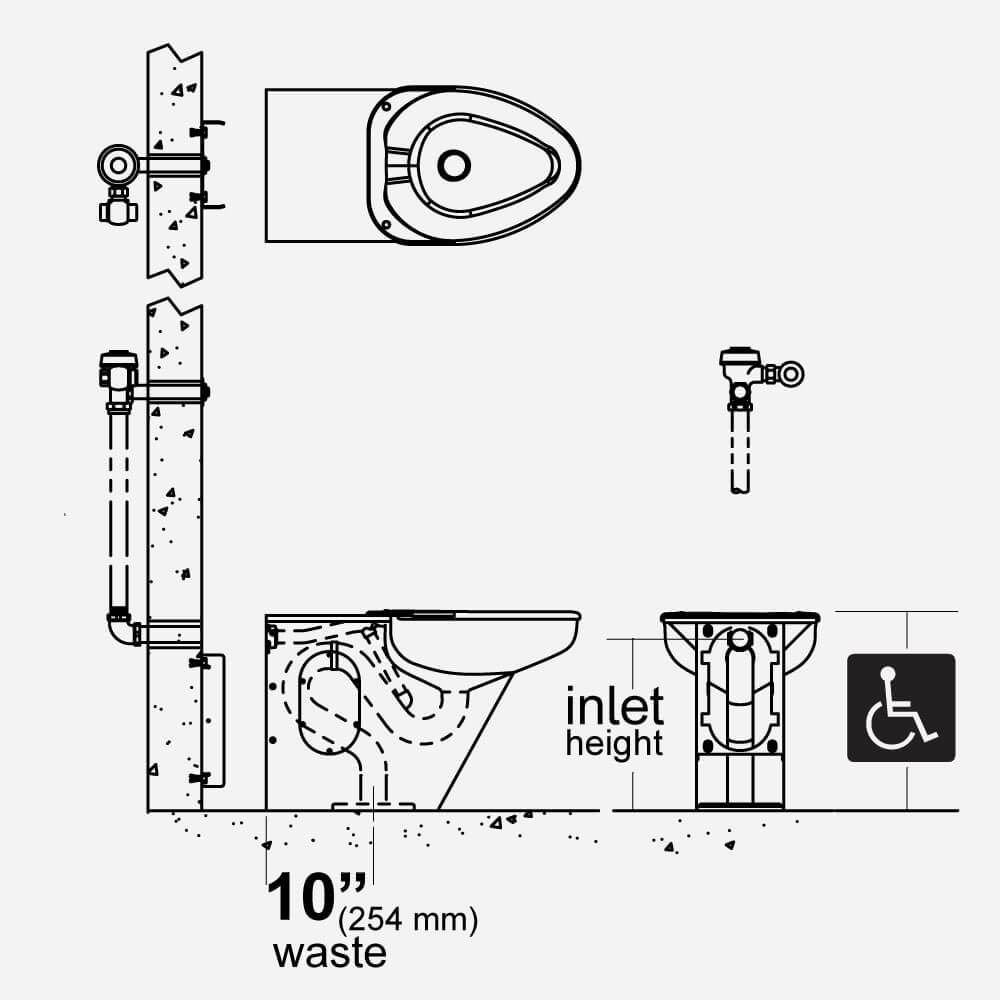

WH2142-ADA-W-3-EGE10_10[IN STOCK] SKU WH2142-ADA-W-0023 Floor Waste Outlet, 10" (254 mm) rough-in from back wall to the center of the waste outlet [ install guide]

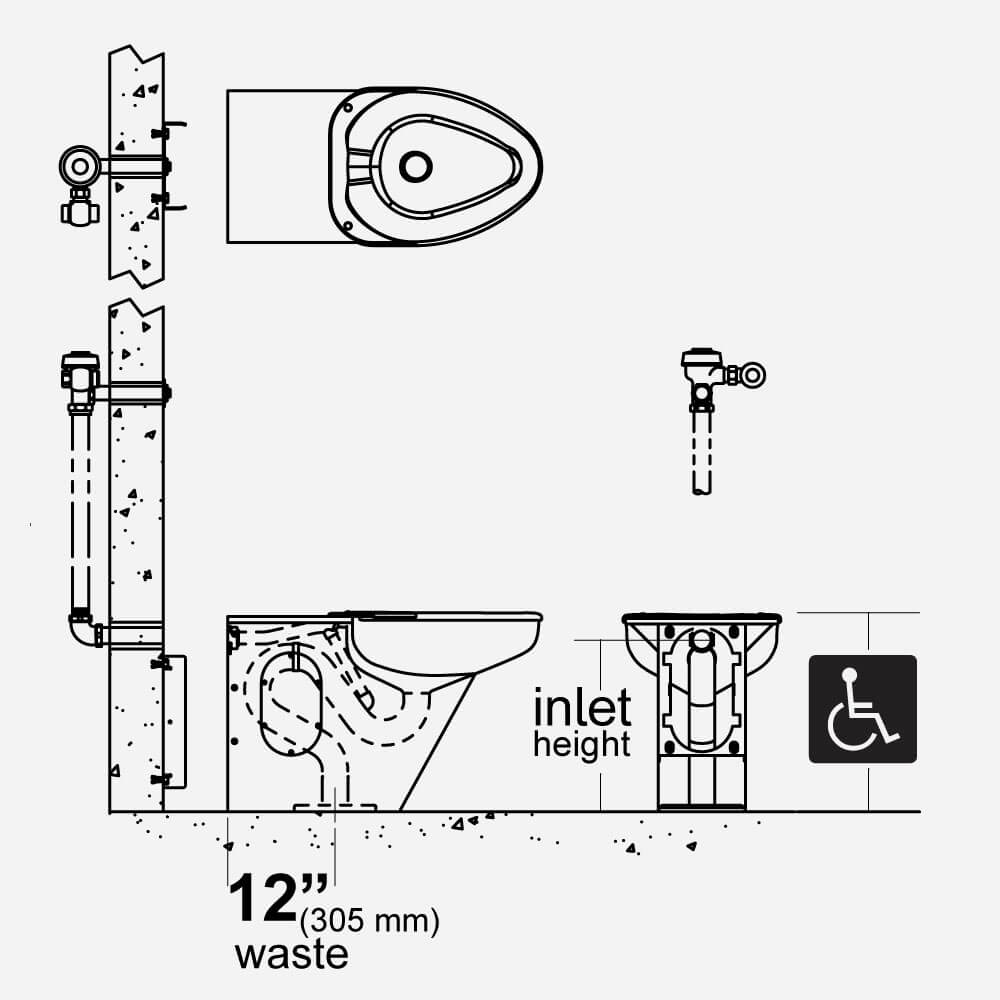

WH2142-ADA-W-3-EGE10_12[IN STOCK] SKU WH2142-ADA-W-0024 Floor Waste Outlet, 12” (305 mm) rough-in from back wall to the center of the waste outlet [ install guide]
OTHER
WH2142-ADA-W-3-EG10_10[IN STOCK] SKU WH2142-ADA-W-0003 Floor Waste Outlet, 10" (254 mm) rough-in from back wall to the center of the waste outlet; All exterior powder coated Enviro-Glaze® Snow White (including bowl) [ install guide]
Units with other finishes can be manufactured including all-stainless steel.
