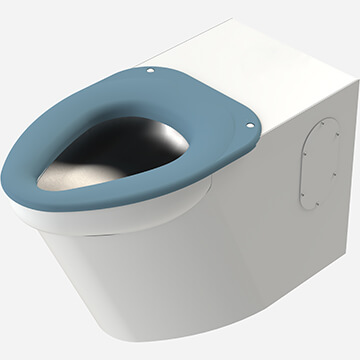

BestCare® Ligature-Resistant Siphon Jet Replacement ADA Toilet for Existing In-Wall Four-Bolt Mounting Carrier
NOTE: For an ADA replacement toilet simply supported on the floor and bolted to a reinforced wall, see Model WHR2142ADA Series Toilets.
Ligature-Resistant Siphon Jet Replacement Toilet is arranged to be installed against a finished wall from the front side to an existing In-Wall Mounting Carrier Support with a four-bolt pattern. The fixture is designed to replace a wall-hung toilet that was previously installed with a Four-Bolt Mounting Carrier Support. The replacement toilet uses the existing 5/8" UNC Carrier Studs to mount the unit to the wall while supported by the on-floor housing. The unit includes access panels on both sides to facilitate the installation. The unit is fabricated from 16 gauge, type 304 stainless steel and is seamless welded construction with exterior surfaces powder-coated white (the interior of the toilet will have a satin finish and will not be powder coated). The toilet will be provided with WH-LRSC-GRAY Ligature Resistant ABS Toilet Seat Cover.
The waste is evacuated behind the toilet into waste plumbing behind the wall. The customer must specify existing rough-in dimensions.
The toilet is manufactured to comply with ASME A112.19.3, CSA B45.4 and 2010 ADA Standards for Accessible Design.

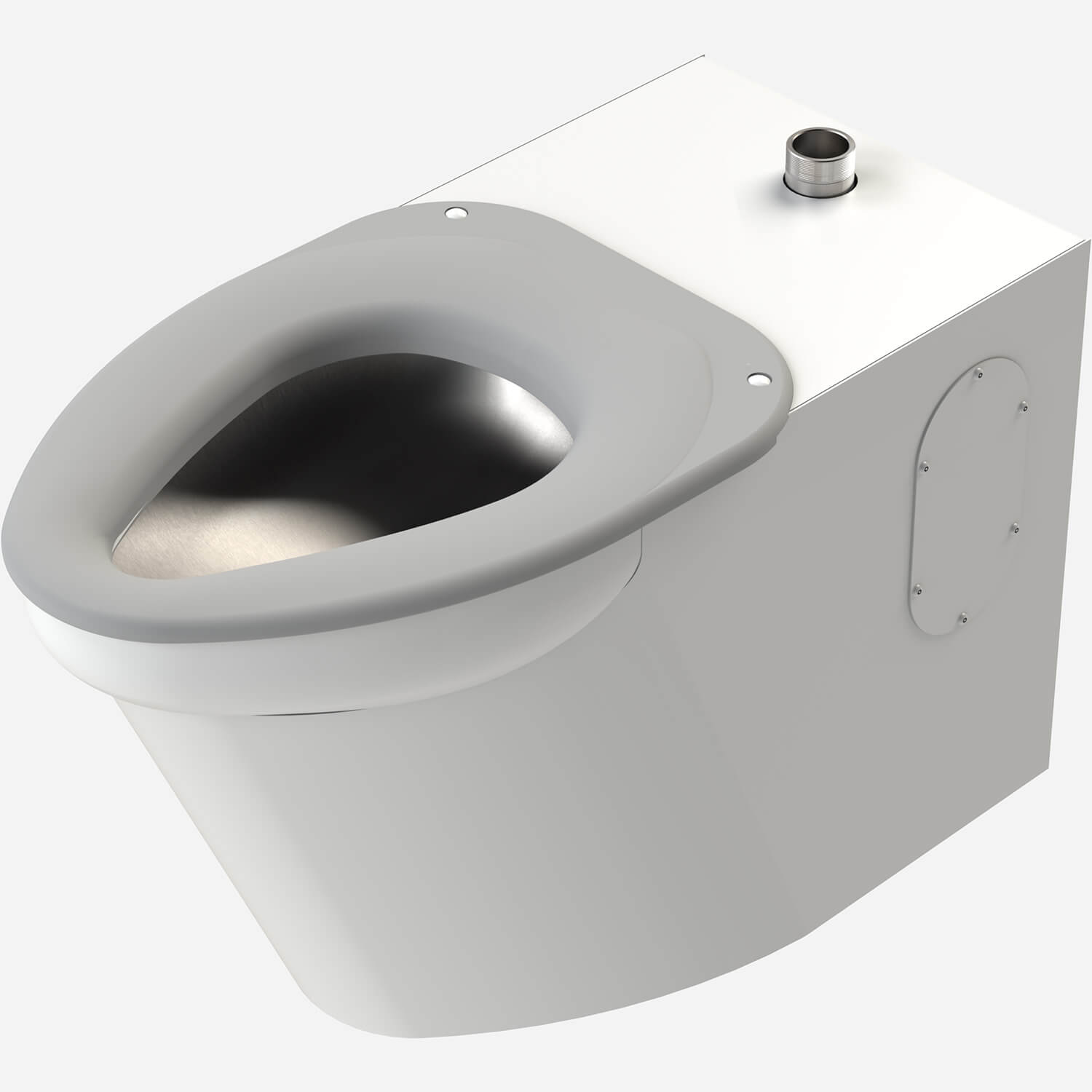

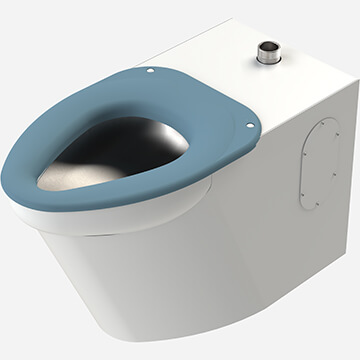

A WHRC2142ADA-T-2-EGE10 Top Supply Toilet is available featuring a top spud and on-floor design with wall waste. To maintain ligature resistance, Whitehall recommends a WH2802-SLPT-ADA Series flush valve with cover, sold separately.

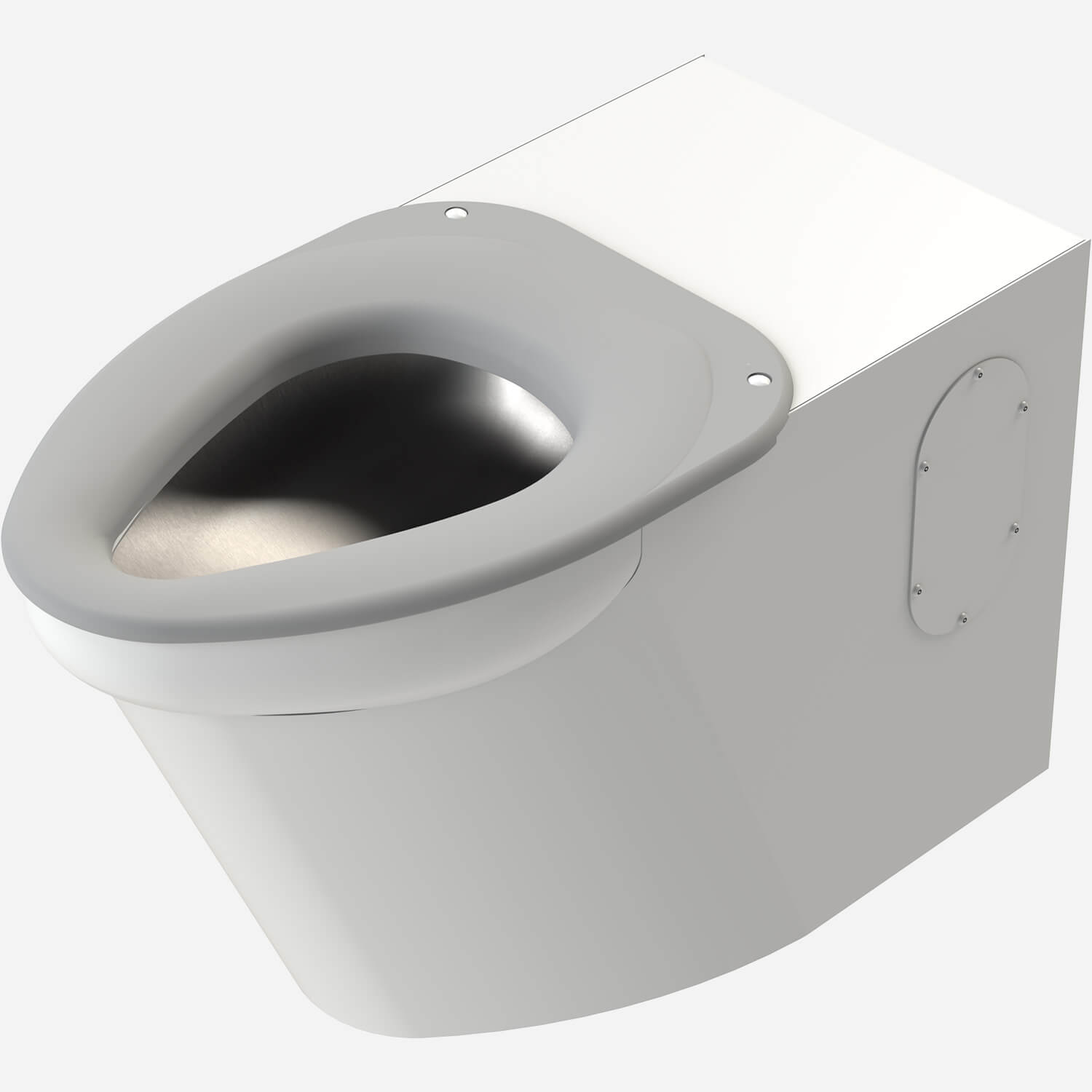

A WHRC2142ADA-W-2-EGE10 Wall Supply Toilet is available featuring a rear spud and on-floor design with wall waste.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | BestCare® Ligature-Resistant Replacement On-Floor, Wall Waste Toilet for Existing In-Wall Four-Bolt Mounting Carrier [WHRC2142-W-2 | Wall Supply; WHRC2142ADA-W-2 | ADA Wall Supply; WHRC2142-T-2 | Top Supply; WHRC2142ADA-T-2 | ADA Top Supply] | 0 | 389 KB | ||
| | BestCare® Ligature-Resistant Siphon Jet ADA Replacement Toilet for In-Wall Bolt Mounting Carrier [WHRC2142ADA-T-2-EGE10 | Top Supply; WHRC2142ADA-W-2-EGE10 | Wall Supply] | 0 | 319 KB | ||
| | BestCare Ligature-Resistant Brochure (pdf) | 0 | 7 MB | ||
| | BestCare Solutions Flyer (pdf) | 0 | 181 KB | ||
 | | How to install a BestCare® toilet seat (video) | 0 | 132 KB | ||
| | Overview of Whitehall's BestCare® Ligature-Resistant Toilets (video) | 0 | 135 KB | ||
| | How to remove and clean a ligature resistant toilet seat (video) | 0 | 138 KB |
Specifications
| Appropriate for | Ligature Resistant, Retrofit |
| Material | Stainless Steel |
| Material Details | White powder coating |
| Brand | BestCare® |
| Configuration | On-Floor, Wall Waste |
| Flush Valve | Wall Supply - typically concealed in wall, Top Supply - requires ligature-resistant cover for flush valve |
| Accessibility | ADA Compliant |
| Toilet Seat | Non-Lifting Ligature Resistant Grey ABS Plastic Toilet Seat Cover (included with toilet) |
| Features | Requires 25 psi commercial water supply, Ligature-Resistant Design, Replaces a wall-hung toilet previously installed with a four-bolt mounting carrier |
| Patent | 10,052,000 B2 |
| Compliances | UPC®, NY State Office of Mental Health |
| Waste Location | Wall |
| CSI Divisions | Division 22 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | WH-LRSC Series | BestCare® Ligature-Resistant Toilet Seat Cover | ||
 | WH2802-SLPT-ADA Series | BestCare® Ligature-Resistant Box with Hydraulic Flush Valve for Top Supply ADA Toilet | ||
 | WHD2898 | Whitehall® BestCare® Dignity Suite® Ligature-Resistant Pushbutton Flush Valve Access Panel for Use with Grab Bar | ||
 | WHD2898-SO | BestCare® Dignity Suite® Ligature-Resistant Sensor Operated Flush Valve Access Panel for Use with Grab Bar |
Models
All toilets in this series are Ligature-Resistant, Stainless Steel, Siphon Jet Type, and on-floor design with wall waste. The exterior of the toilet is powder-coated Enviro-Glaze® Snow White (the toilet bowl is left satin finish stainless steel). Gray WH-LRSC-GRAY Ligature-Resistant ABS Toilet Seat Cover is supplied - other seat color choices are available.

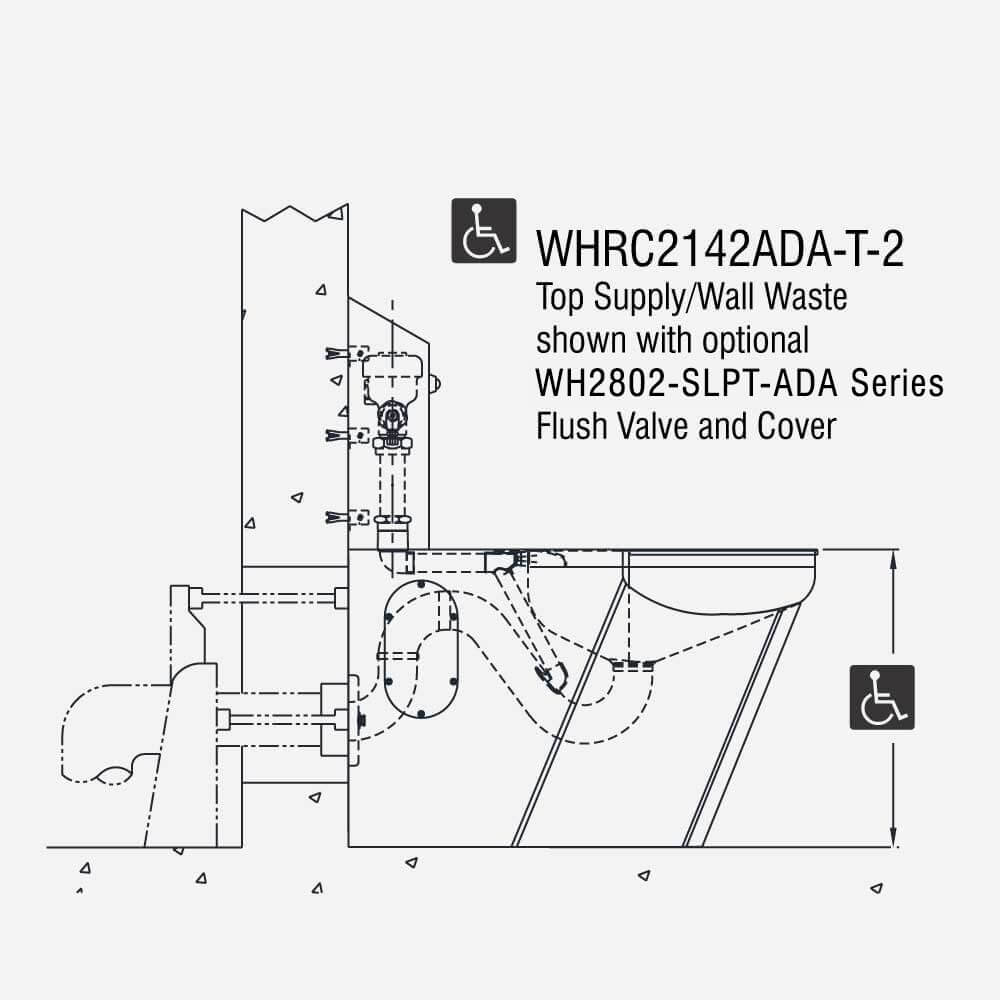

WHRC2142ADA-T-2-EGE10 Top Supply (top spud) shown with recommended WH2802-SLPT-ADA Series Flush Valve and Cover

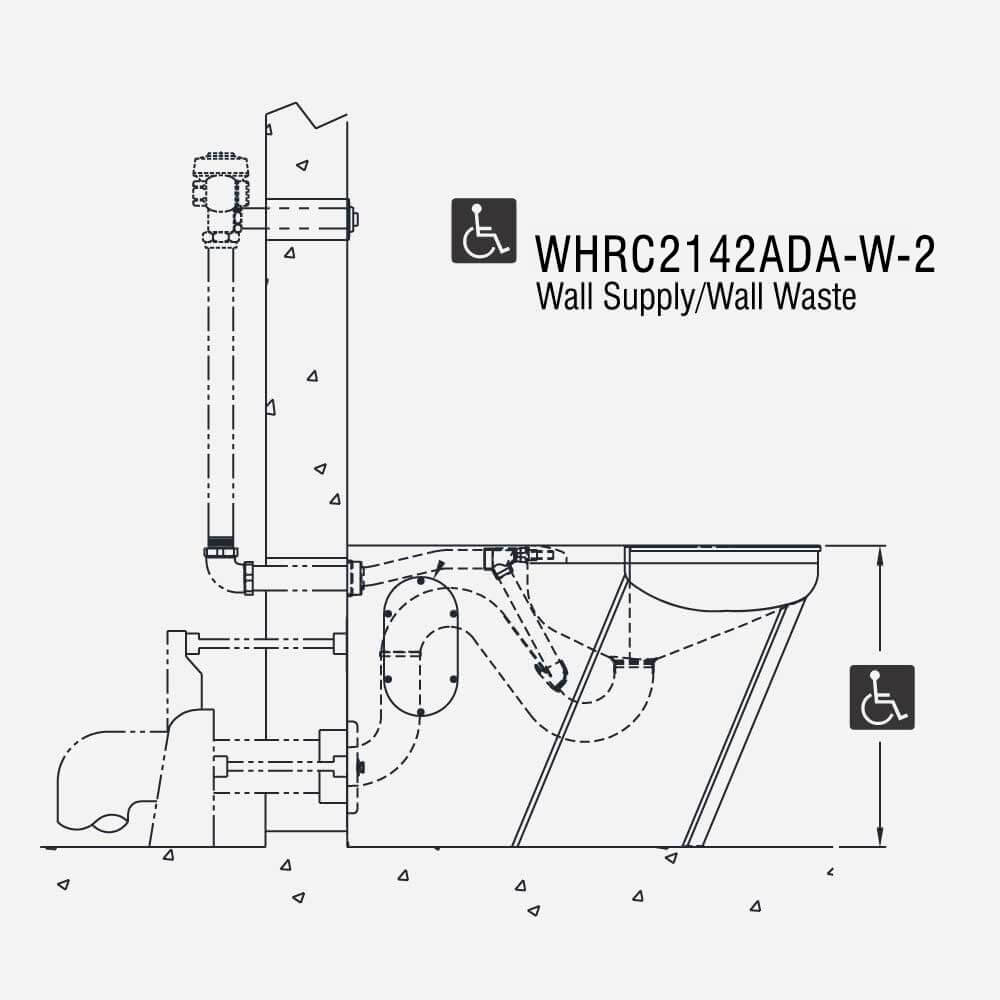

WHRC2142ADA-W-2-EGE10 Wall Supply (rear spud)
