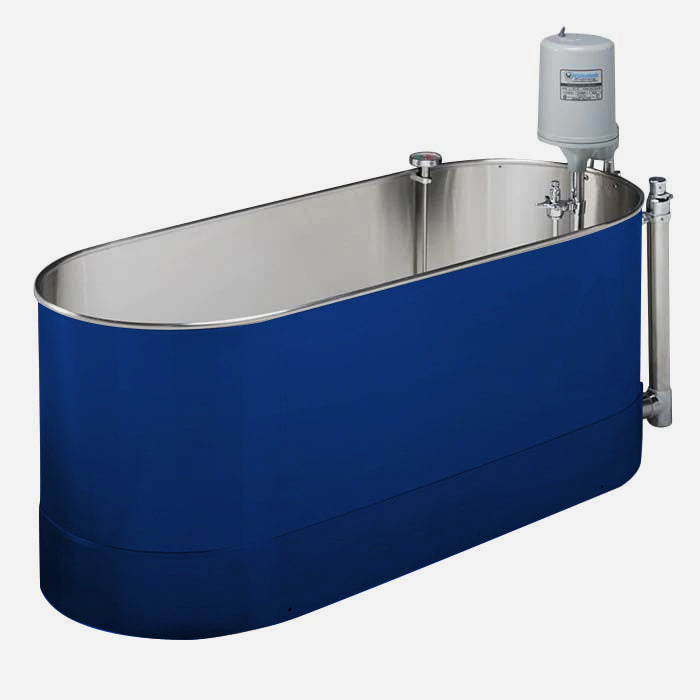

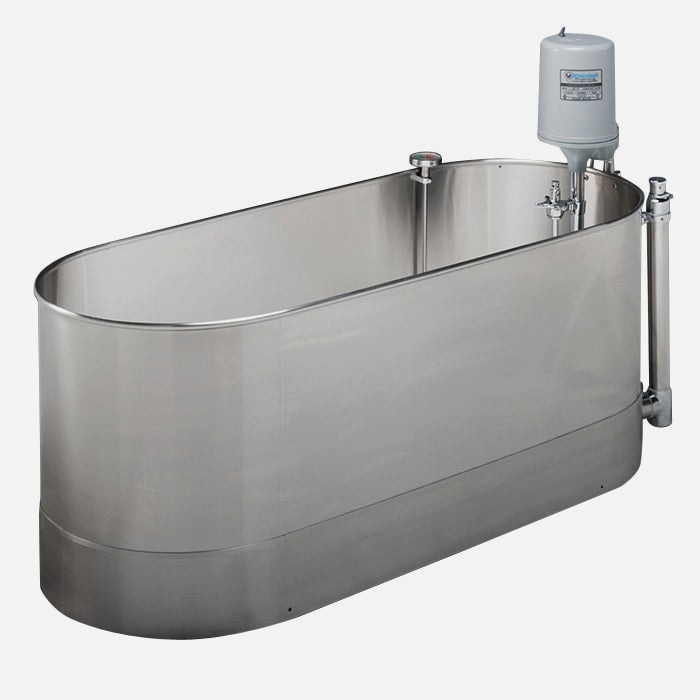

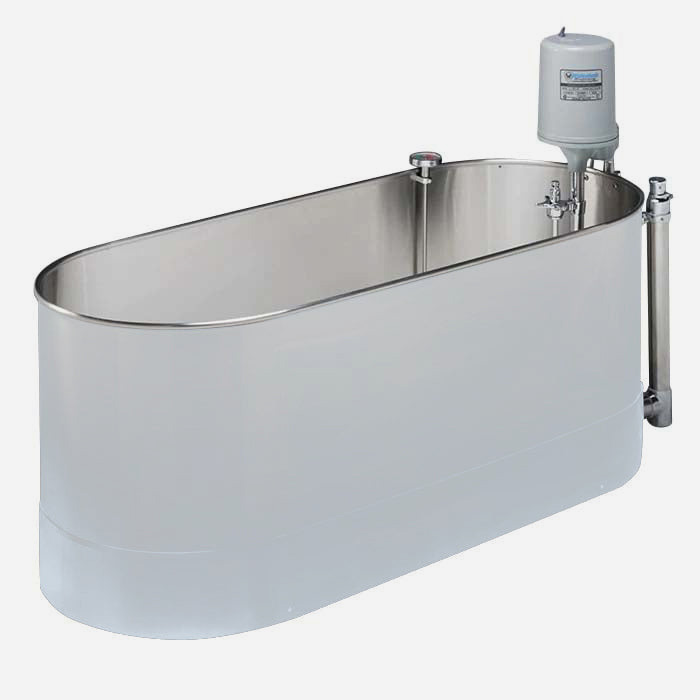

90 Gallon Stationary Lo-Boy Whirlpool

Whitehall offers a wide variety of different sizes and shapes to allow clinicians and therapists to select the products that best meet their users’ needs.

Whitehall® whirlpools can function as both whirlpool tubs and a cold tank by removing the turbine assembly and thermometer when cold temperature is required. The turbine assembly and thermometer can be replaced to covert the tank back to warm-water whirlpool use.

The WHL-90-S stationary whirlpools are recommended for use on the extremities, hip, and back area while providing space for movement.

Dimensions: Tank Length | 60 inches (1,525 mm) Tank Width | 24 inches (610 mm) Tank Depth | 18 inches (455 mm) Tank Height | 24 inches (610 mm) Tank Capacity | 90 Gallons (340.68 liters)

Ideal for use below the shoulder

Tanks are fabricated of heavy-duty Type 304 stainless steel providing strength and durability. Stainless steel is one of the easiest materials to clean and sanitize. The tank can be a canvas to promote team spirit with Enviro-Glaze® powder coating and provision of team or organizational logo.

LO-BOY WHIRLPOOL

Whitehall® Lo-Boy Whirlpools feature shorter sides than standard whirlpools in order to provide full-body immersion with easy access. Larger (90-and 105-gallon lo-boy whirlpools) provide enough space for movement within the tub.

Low-Boy hydrotherapy whirlpools are ideal for use on the Hips, Back, Upper and lower extremities on Pediatric and Geriatric users.

STATIONARY WHIRLPOOLS

• Uses permanent plumbing connection
• Offers direct connection to drain and water supply
• Comes standard with high-capacity gravity drain

Turbine Assembly is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome-plated brass or bronze. Stationary Whirpools are provided with aerator cap. Mobile and Legs Whirlpools are provided with a pump-out hose assembly. Through certification from Intertek, the turbine meets US & Canadian Medical Standards UL 60601-1 & CSA C22.2 No. 601.1 and European Standards IEC 60601-1. Turbines operating with 115 Volts require 6.9 Amps 50 Hertz or 6.2 Amps 60 Hertz. Turbines operating with 230 Volts require 3.5 Amps 50 Hertz or 3.1 Amps 60 Hertz. Cord Type of European, United Kingdom, Australia,India or Israel must be specified for 230 Volts.
