110 Gallon Sports Whirlpool with Legs

Find A Representative
Model WHS-110-SL
ETL Classified Intertek 5016885
Installation Instructions
Manual WH Series Stationary Whirlpools (pdf)
View
Submittal
Submittal WHS-110-SL Whirlpool (pdf)
View

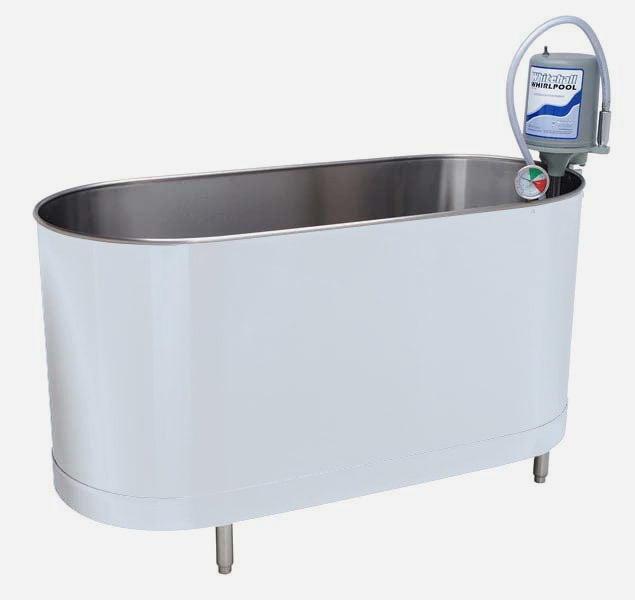

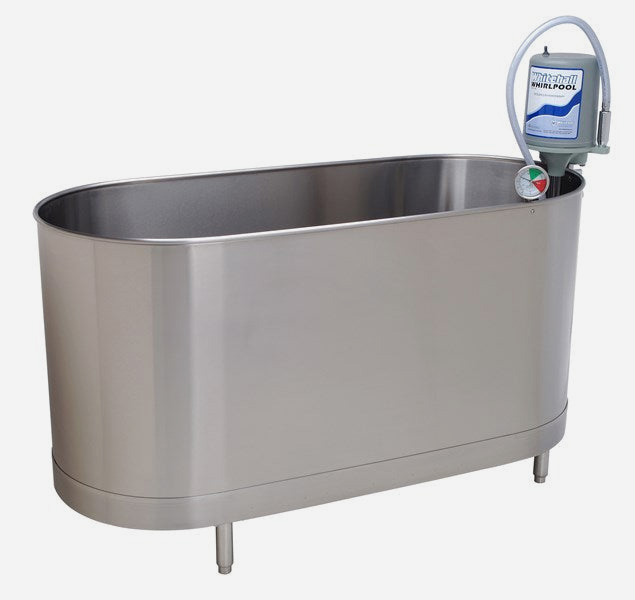

Model WHS-110-SL

110 Gallon Sports Whirlpool with Legs

Made in the USA

Whitehall offers a wide variety of different sizes and shapes to allow clinicians and therapists to select the products that best meet their users’ needs.

Whitehall® whirlpools can function as both whirlpool tubs and a cold tank by removing the turbine assembly and thermometer when cold temperature is required. The turbine assembly and thermometer can be replaced to covert the tank back to warm-water whirlpool use.

The WHS-110-SL whirlpool is specifically designed for the extremities, hips, back, and shoulder areas.

This whirlpool features a turbine with a hose assembly to empty the tank.

Dimensions: Tank Length | 56 inches (1,420 mm) Tank Width | 24 inches (610Â mm) Tank Depth | 25 inches (635 mm) Tank Height | 34 inches (840 mm) Tank Capacity | 110 Gallons (416 liters)

Upto Neck Ideal for use from the shouder down

Tanks are fabricated of heavy-duty Type 304 stainless steel providing strength and durability. Stainless steel is one of the easiest materials to clean and sanitize. The tank can be a canvas to promote team spirit with Enviro-Glaze® powder coating and provision of team or organizational logo.

SPORTS WHIRLPOOL

Whitehall® Sports Whirlpools are larger than other whirlpools in order to accommodate larger athletes. They are ideal for use on most of the body, including the upper and lower extremities, hips, back, and shoulders.

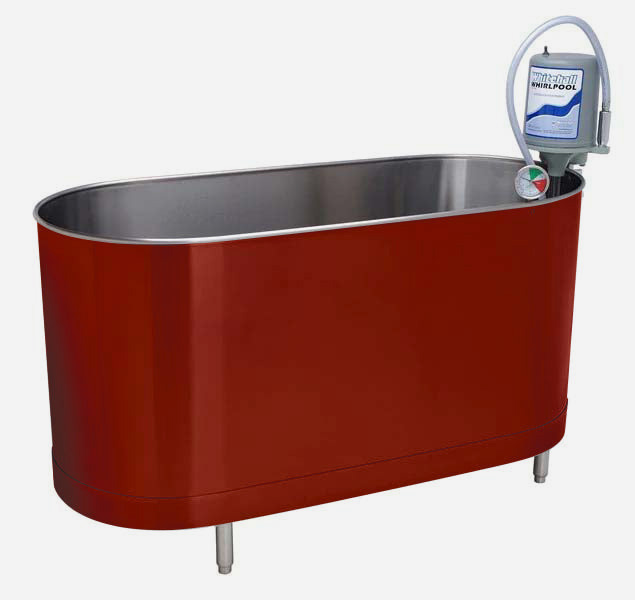

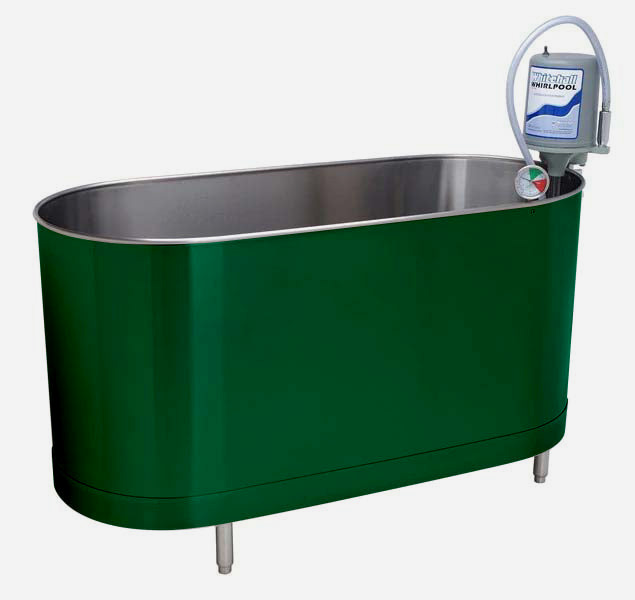

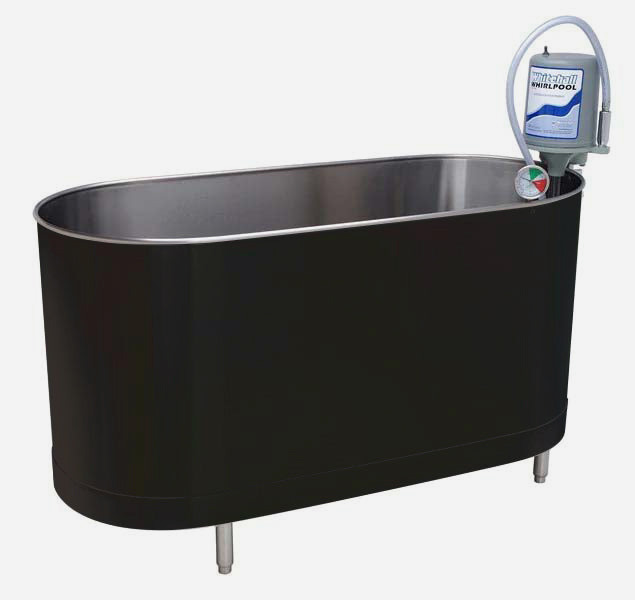

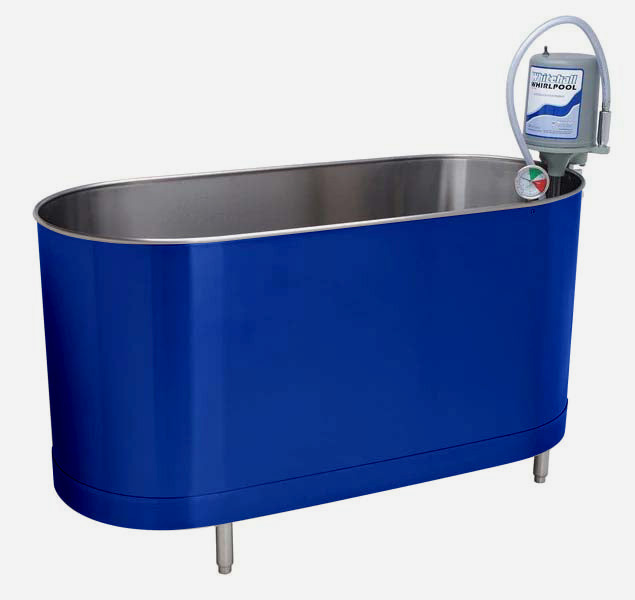

Customize Your Team Logo and Color - Enhance team spirit with Enviro-Glaze® custom options. The Enviro-Glaze powder coat finish is a colorful alternative to the standard stainless steel. Enviro-glaze powder coating bond with the stainless steel to create a surface that is resistant to cracks, chips, and bubbles. Custom logos can also be applied!

WHIRLPOOLS WITH LEGS

  • Uses permanent plumbing connection
  • Provided with Reversing turbines (standard) used to pump used water out of tank and into available sink/drain
  • Legs are provided to give height to whirlpool but easier for clean up - sweep under the whirlpool.

Turbine Assembly is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome-plated brass or bronze. Stationary Whirpools are provided with aerator cap. Mobile and Legs Whirlpools are provided with a pump-out hose assembly. Through certification from Intertek, the turbine meets US & Canadian Medical Standards UL 60601-1 & CSA C22.2 No. 601.1 and European Standards IEC 60601-1. Turbines operating with 115 Volts require 6.9 Amps 50 Hertz or 6.2 Amps 60 Hertz. Turbines operating with 230 Volts require 3.5 Amps 50 Hertz or 3.1 Amps 60 Hertz. Cord Type of European, United Kingdom, Australia,India or Israel must be specified for 230 Volts.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Installation Instructions
PDF icon
Manual WH Series Stationary Whirlpools (pdf)
Stationary Whirlpools WHE-10-S, WHE-15-S, WHE-22-S, WHE-27-S, WHE-27-SP, WHE-45-S, WHH-60-S, WHH-75-S, WHH-90-S, WHH-105-S, WHL-75-S, WHL-90-S, WHL-105-S, WHL-105-SL, WHS-85-S, WHS-85-SL, WHS-90-S, WHS-90-SL, WHS-110-S, WHS-110-SL, WHSB-100-S02 MB
PDF icon
Submittals
PDF icon
Submittal WHS-110-SL Whirlpool (pdf)
110 Gallon Stationary Sports Whirlpool with Legs [WHS-110-SL | With Standard Drain; WHS-110-SL-SDP | With Separate Drain and Pump]0352 KB
RFA icon
Drawings
RFA icon
WHS-110-SL Whirlpool (rfa)
110 Gallon Sports Whirlpool with Legs05 MB
RFA icon
Drawings
RFA icon
WHS-110-SL Whirlpool (dwg/zip)
110 Gallon Sports Whirlpool with Legs0485 KB
DOC icon
Product MasterSpec
DOC icon
MasterSpec: 224300, Healthcare Plumbing Fixtures (doc)
Whitehall Mfg - Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare shower valves, Healthcare bathing units, Bedpan washers0320 KB
PDF icon
Product MasterSpec
PDF icon
MasterSpec: 224300, Healthcare Plumbing Fixtures (pdf)
Whitehall Mfg - Healthcare water closets, Flushometer valves, Toilet seats, Patient care units, Healthcare showers, Healthcare shower valves, Healthcare bathing units, Bedpan washers0282 KB

Specifications

Capacity in Liquid Volume110 gallons
MobilityWith Legs
Whirlpool Tank StyleSports
MaterialStainless Steel
Body Treatment Location(s)Shoulders on Down
Appropriate forAthletic Trainer, Physical Therapist, Podiatrist, Hand Therapist
CompliancesETL Classified Intertek 5016885

Options

Accessories

Model
Description
Downloads
Accessory: Adjustable Suspension Seat for 24" Wide Whirlpool
AS2
Accessory: Adjustable Suspension Seat for 24" Wide Whirlpool
Accessory: Tank Top Seat for 24" Whirlpool
TTS2
Accessory: Tank Top Seat for 24" Whirlpool

Miscellaneous

Model
Description
Downloads
Option: Ground Fault Interrupter
GFI
Option: Ground Fault Interrupter

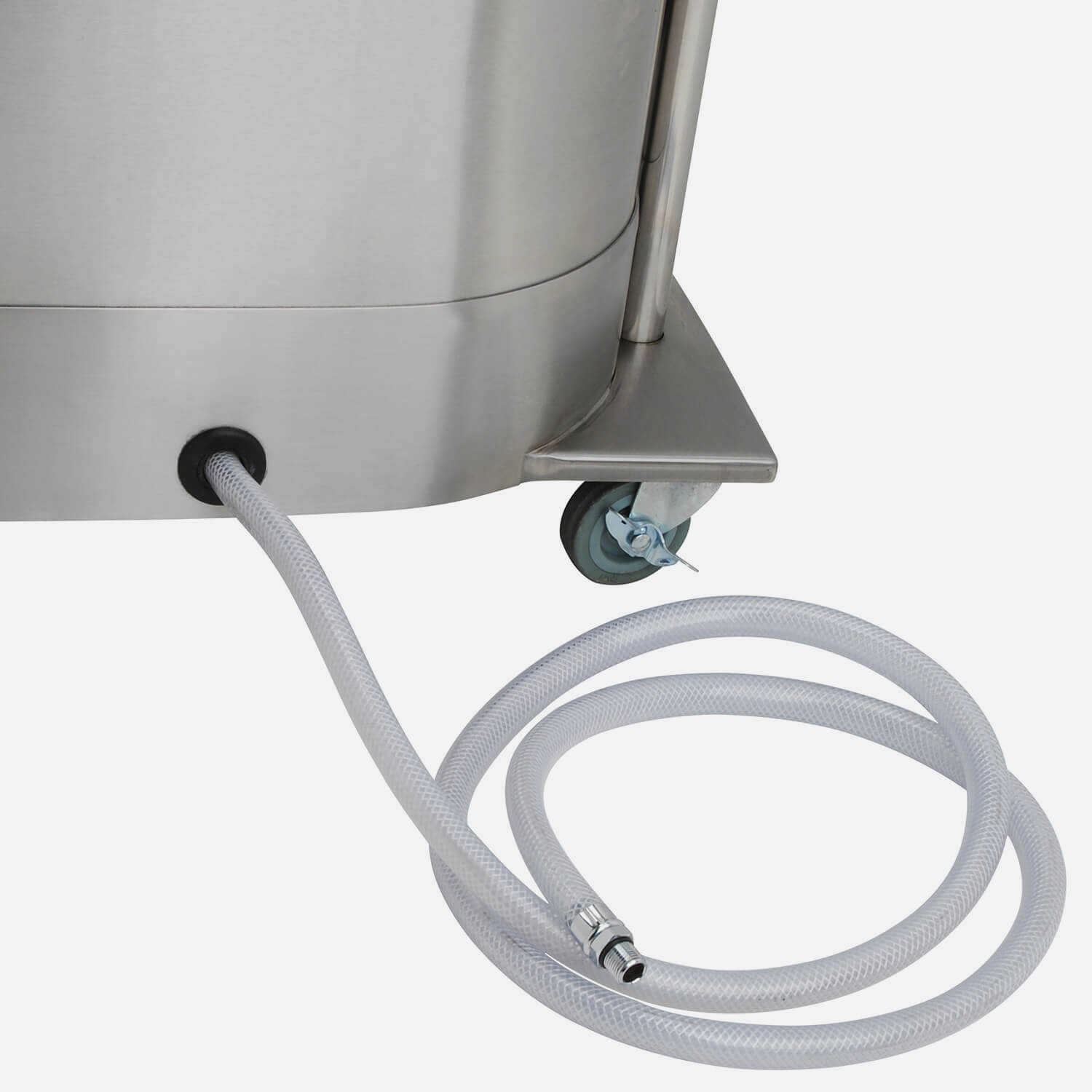

Option: Separate Drain with Pump - Mobile Whirlpools and Whirlpools with Legs
SDP
Option: Separate Drain with Pump - Mobile Whirlpools and Whirlpools with Legs

Models

Select Drain Type for Whirpools with Legs

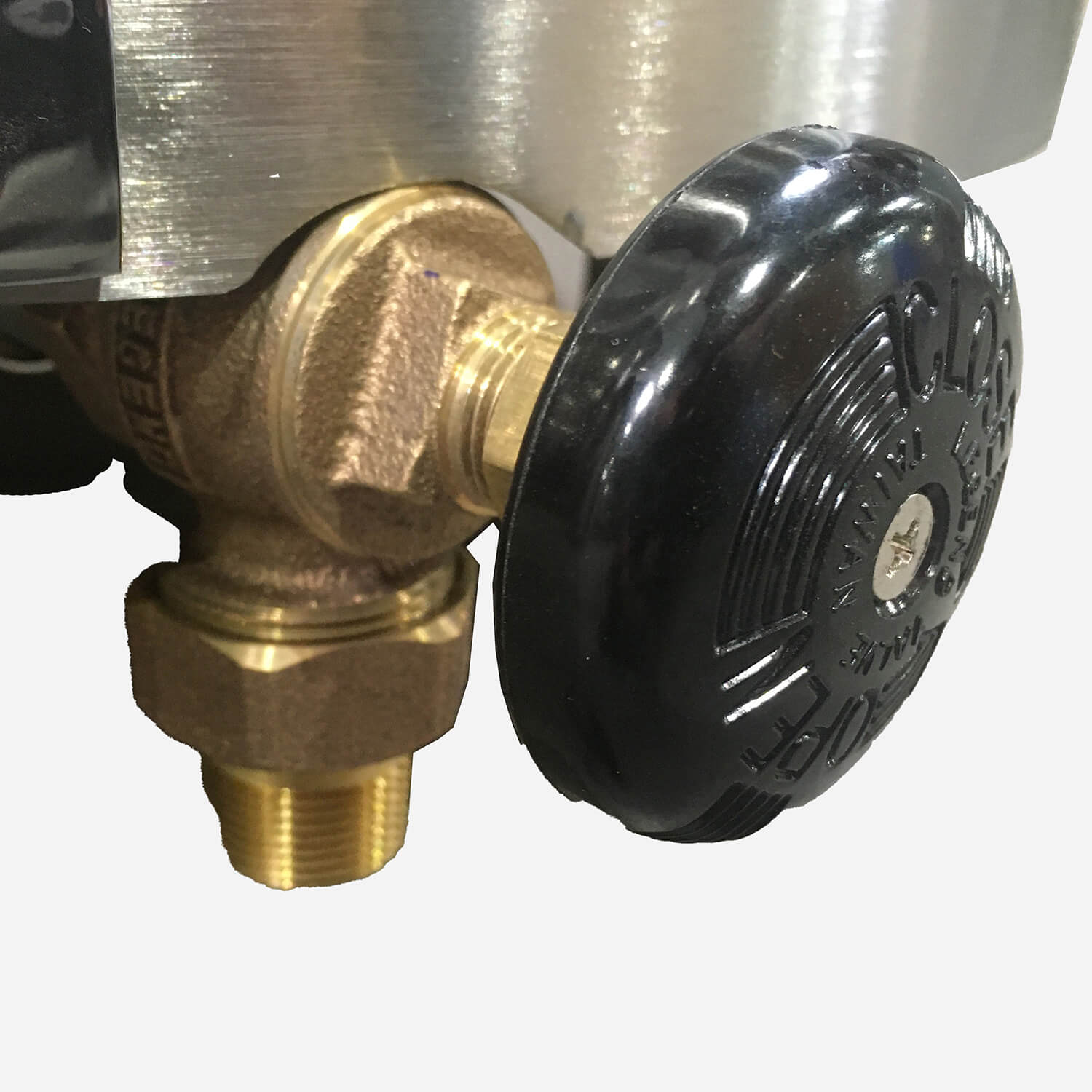

standard drain for mobile whirlpool

Standard Drain

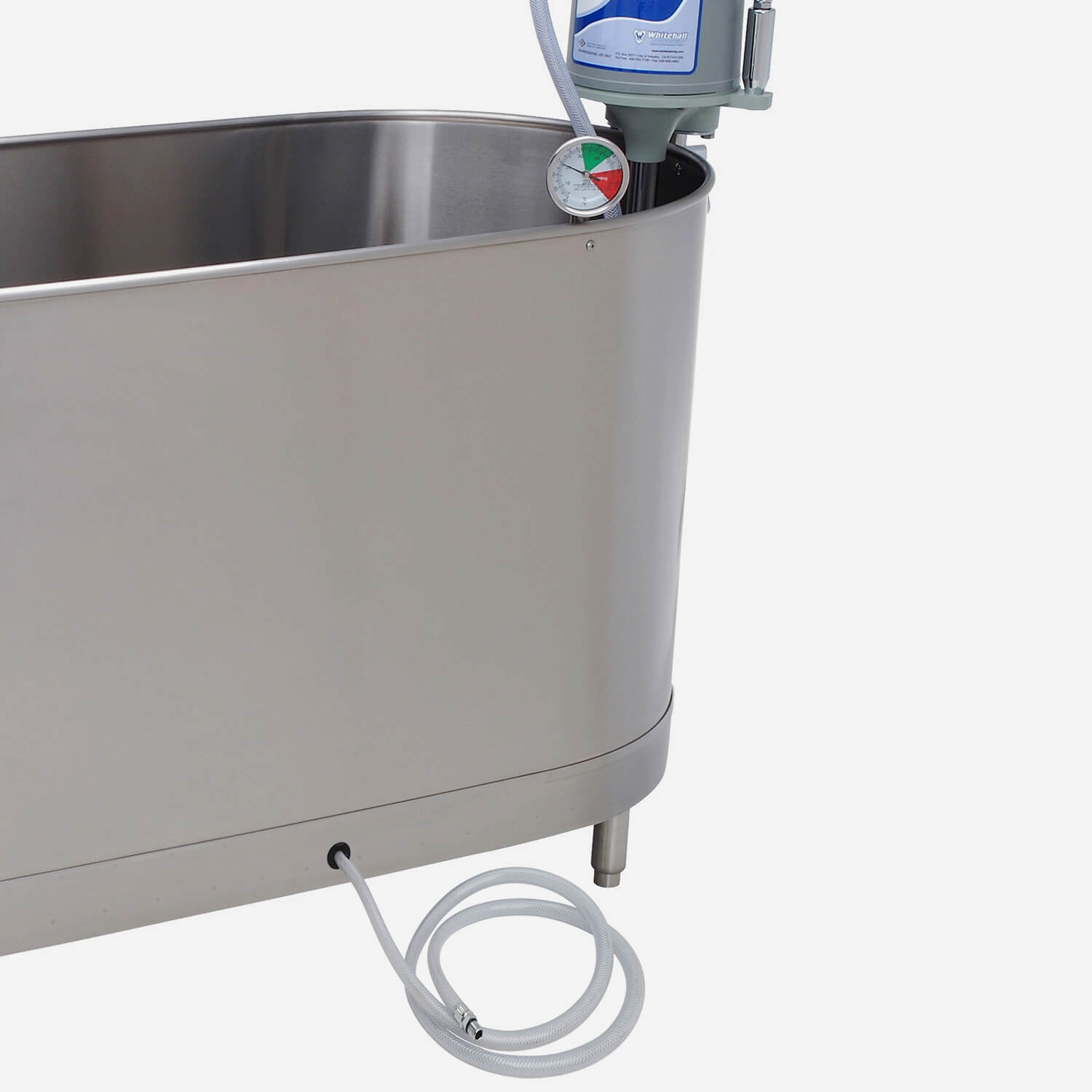

Separate Drain Pump

Option -SDP Separate Drain Pump

Select Plug Type for Supplied Turbine

standard plug

Standard Plug

GFI Plug

Option -GFI Ground Fault Interrupter

Specify: 115 Volts or 230 Volts For 230 Volts specify: for use in European, United Kingdom, Australia, India or Israel

Select Finish and/or Custom Graphics:
